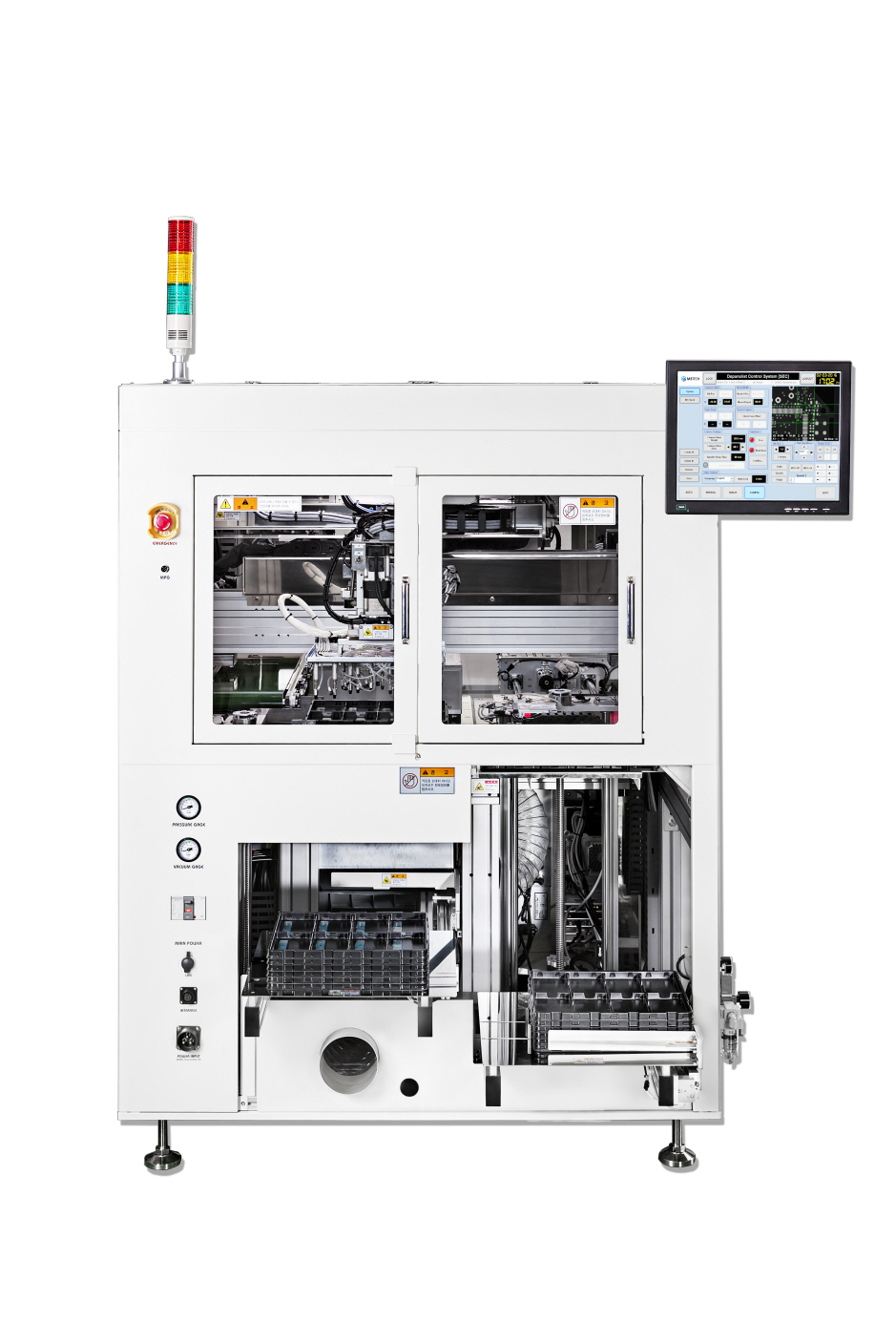

iDPL-ST Auto Unloading Combined Type High Speed In-Line Router
It is more improved the equipment operating speed with developing Z axis rigidity & Speed innovatively.
And It is reduced the summative manpower and expenses to do unloading PCB to Tray directly after cutting with applied Tray Auto Unloading System.
And It is reduced the summative manpower and expenses to do unloading PCB to Tray directly after cutting with applied Tray Auto Unloading System.
Detail
-

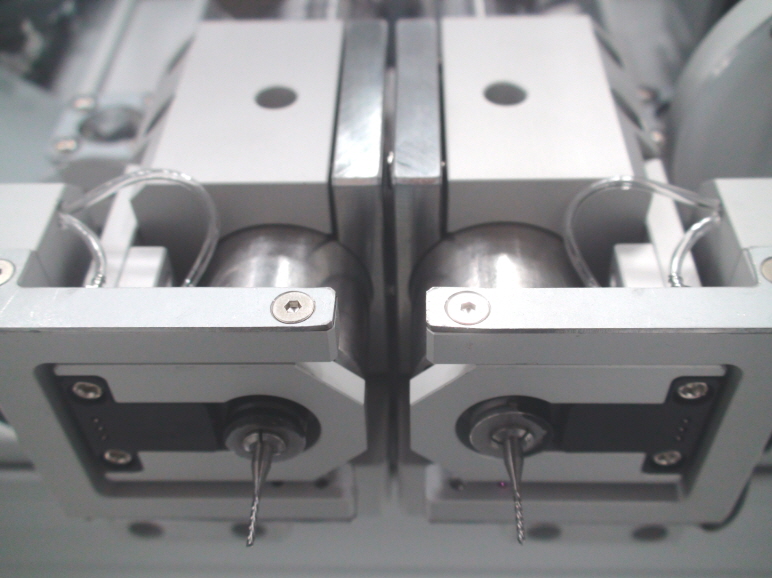

- New Type of Innovative Z Axis
- It will be more improved cycle time & work capacity with developed & applied crank type z axis which is increased the up & down speed innovatively.
-

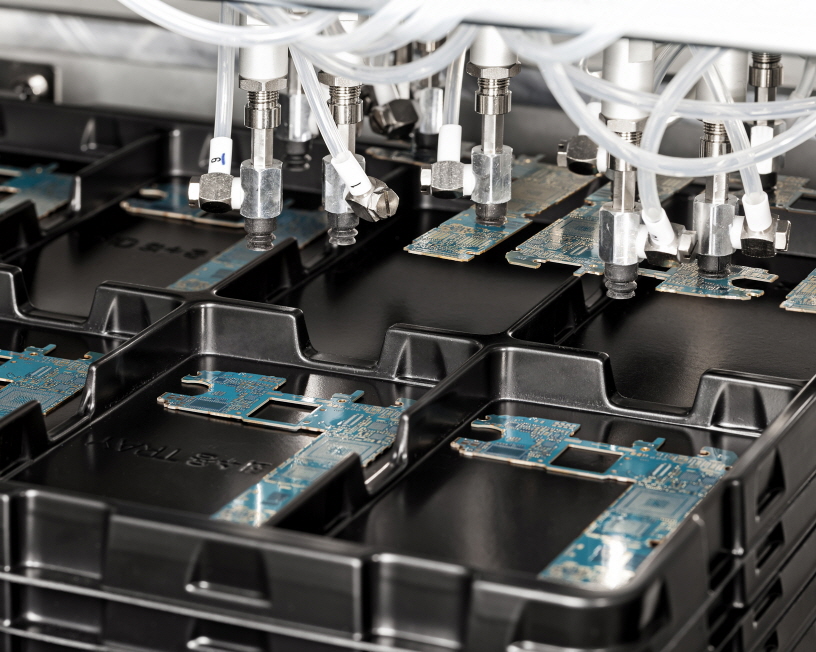

- Auto Loading System (Tray)
- After cutting PCB, it is unloading it to tray directly and same direction by using rotated unloader after cutting it. And full try is released by order with stacking system.
-

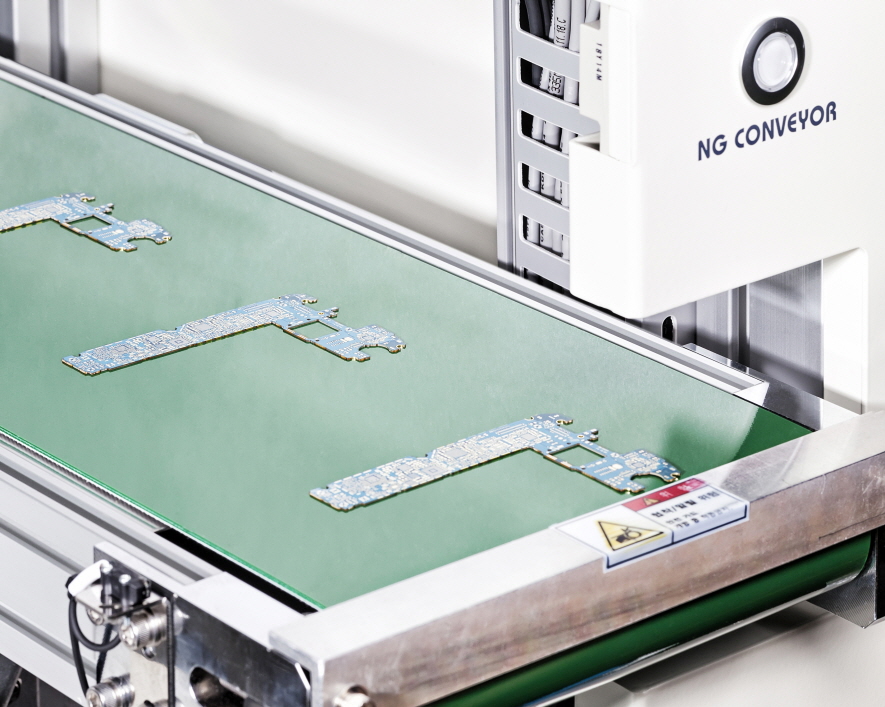

- Auto Pass/Fail Separation System
- It is separating the pass/fail PCB through data from front equipment by MES or NG mark data. And passed PCB is unloading to Tray and Failed PCB is unloading to NG conveyor
-

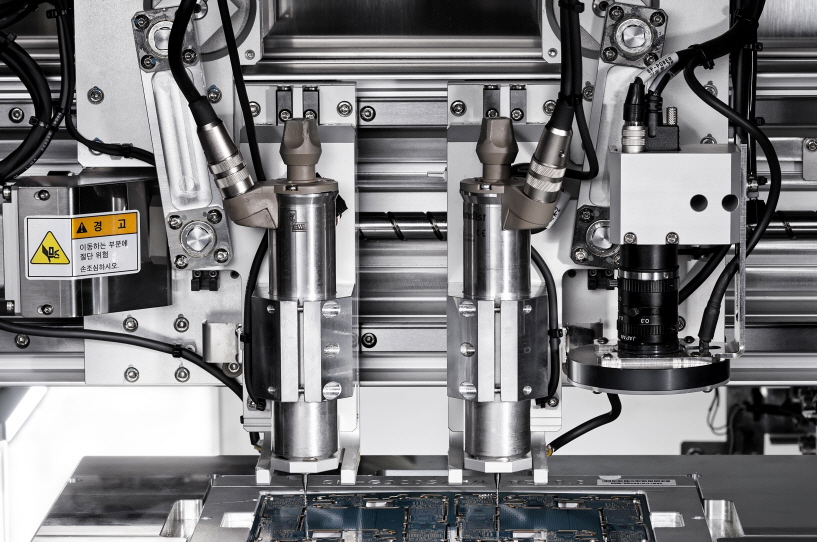

- Real-Time Monitoring of Spindle RPM
- It is protected PCB from Spindle error problem by real-time spindle RPM monitoring applied the RPM sensor.
-

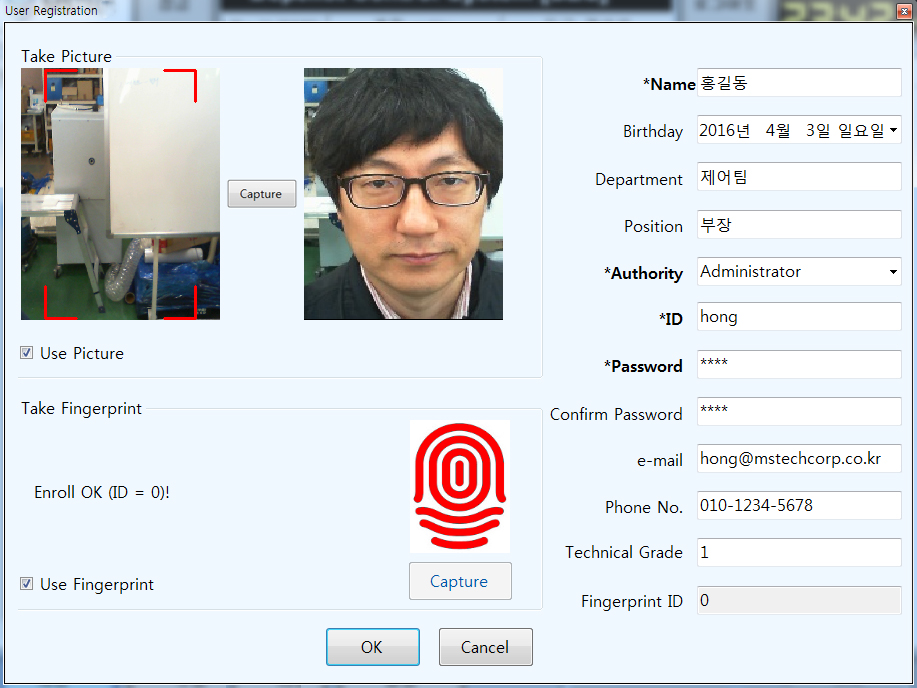

- Finger Scan Function
- As more enhanced security function than previous log-in system, customer can manage the machine operation & maintenance more efficiently, Fingerprints of authorized persons are registered in the system with their face picture, and they can log in the system with their fingerprints. The log-in record remains at log file of system.
