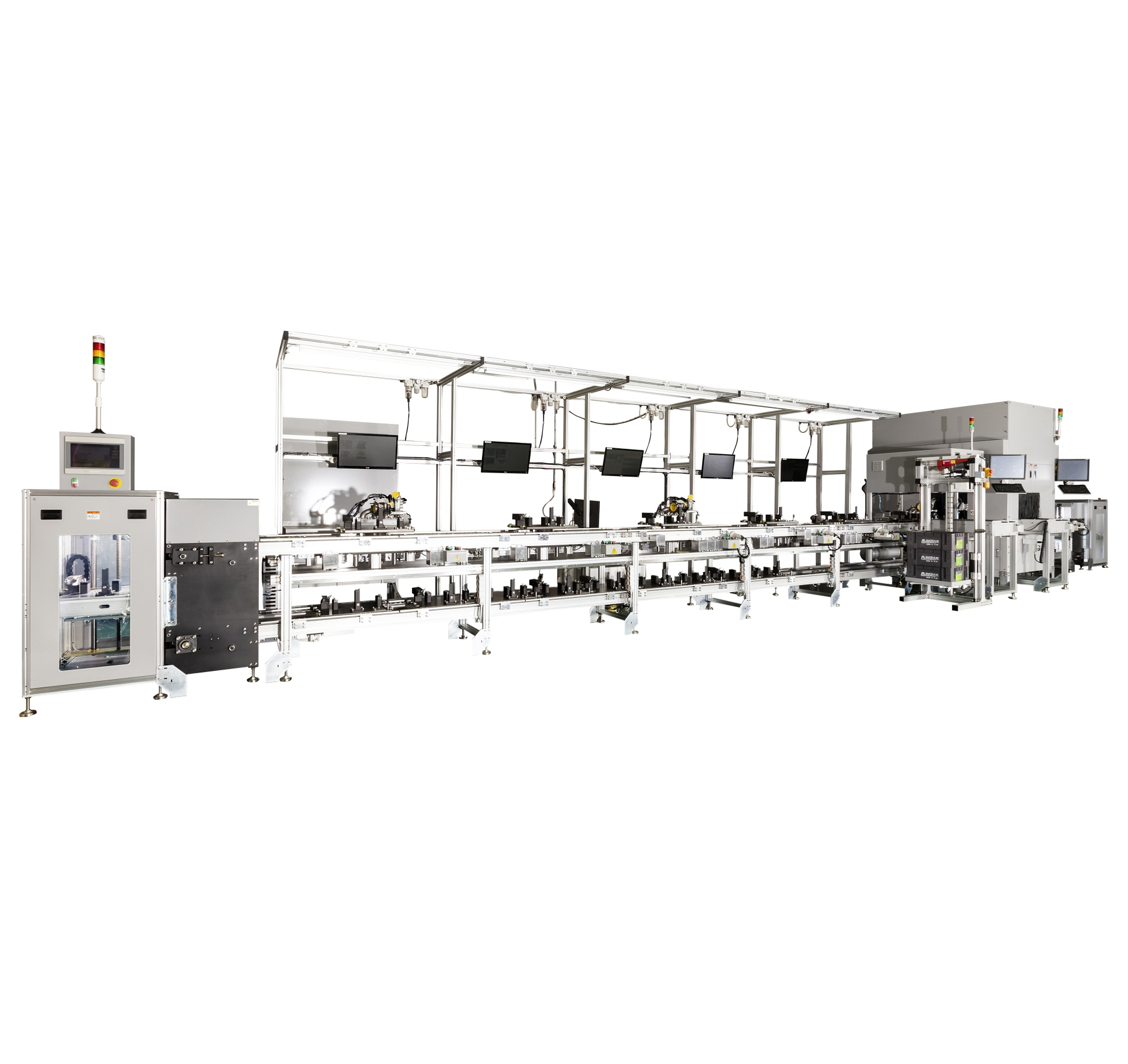

Automobile Assembly Line Automobile Assembly Line

Features

  • Fool-Proof Turbo Charger Assembly Line
  • Leakage Test
  • Vision Inspection Test
  • 2 Level Conveyor System
  • High Precision Turbo Charger Skid
  • Wireless Torque Wrench
  • Barcode Management on Each Ass’y Section
  • Line Management System (LMS)

Options

  • Material Box Lift
  • MES Interface

Features

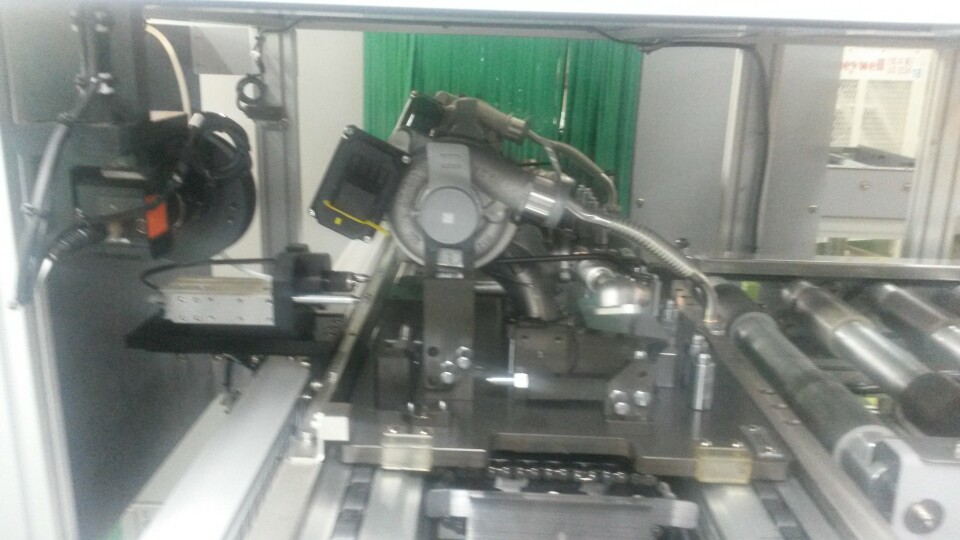

  • Leakage Test
    Compressed air is supplied to assembled Turbo Charger and check leakage on each assembly point automatically.

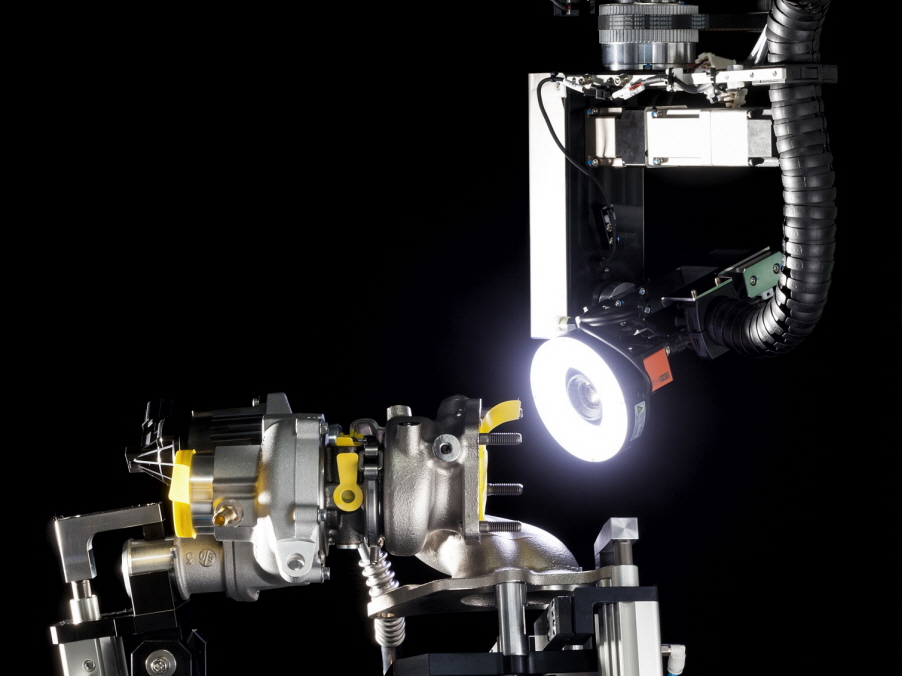

  • Vision Inspection Test
    Assembled Turbo Charger is examined by Vision Inspection System for wrong assembly of Stud Bolts, Gaskets, Washer, Flange/Hexa Bolts, Clips, etc.

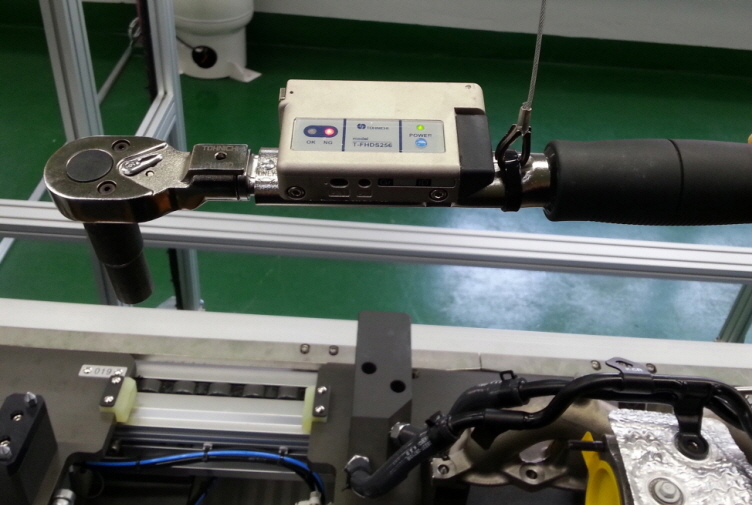

  • Wireless Torque Wrench
    Wireless Communication Module(RFID) adopted Torque Wrench is used, optimal torque is managed.
    Line Management System(LMS) is interlocked.

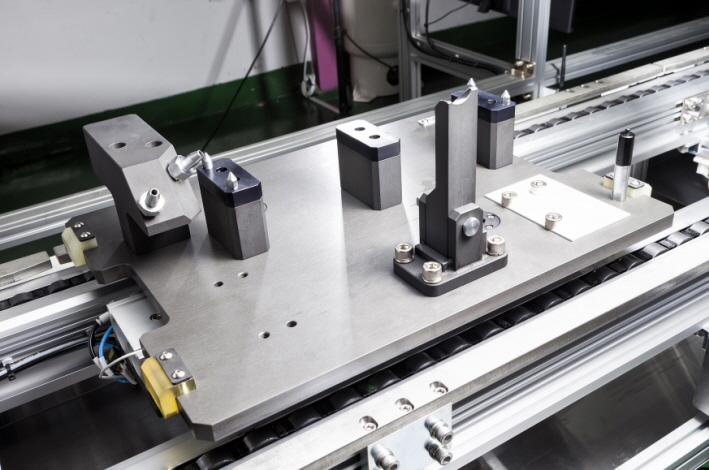

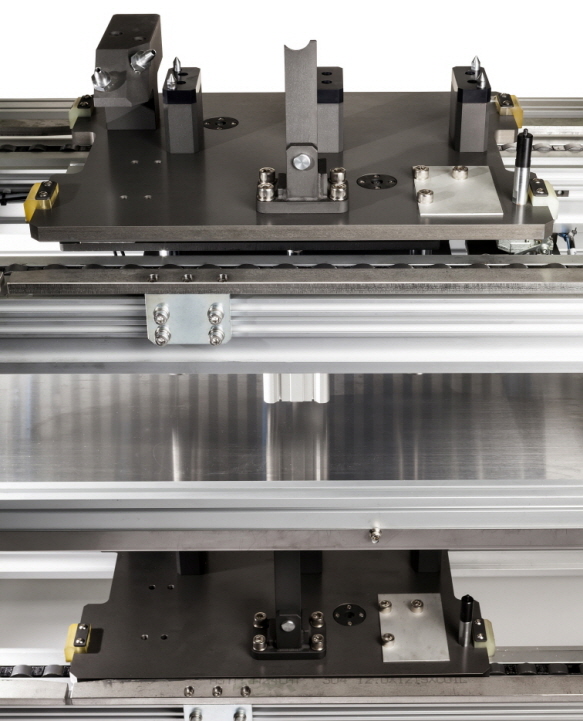

  • High Precision Turbo Charger Skid
    High precision Turbo Charger Skid is applied. Skid is lifted for operator fatigue or rotated (90˚, 180˚, 270˚, 360˚) by cylinder.
  • 2 Level Conveyor System
    2 level conveyor system is configured for smooth of multiple Skids.

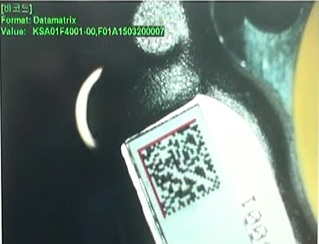

  • Barcode Management on Each Ass’y Section
    Barcode is scanned on each assembly section manually/automatically for production management and monitoring.

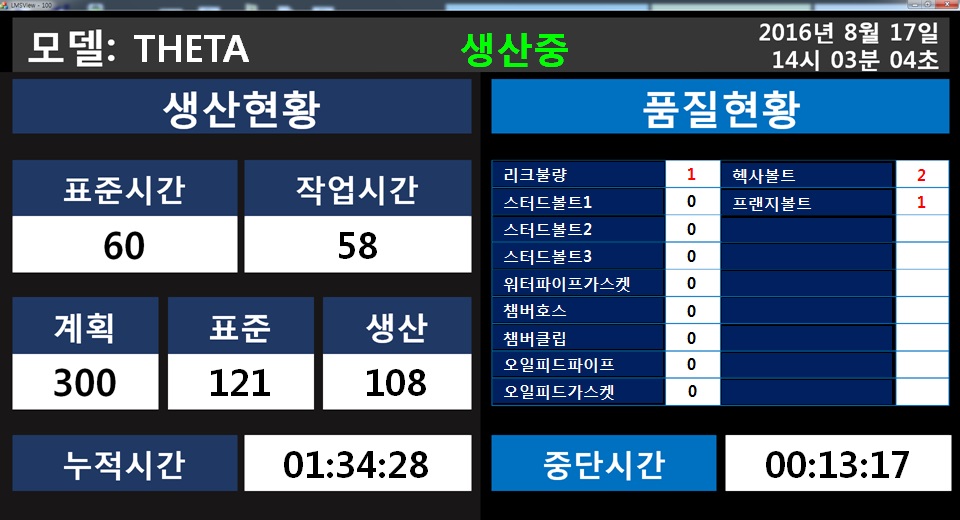

  • Line Management System(LMS)
    Real-time production management and line status is displayed by graphical interface.
  • Data Base(DB) Establish
    Data Base(DB) is established with Line Management System(LMS) from Torque Test, Leak Test and Vision Inspection. All test information, history of materials and traceability is possible.

Options

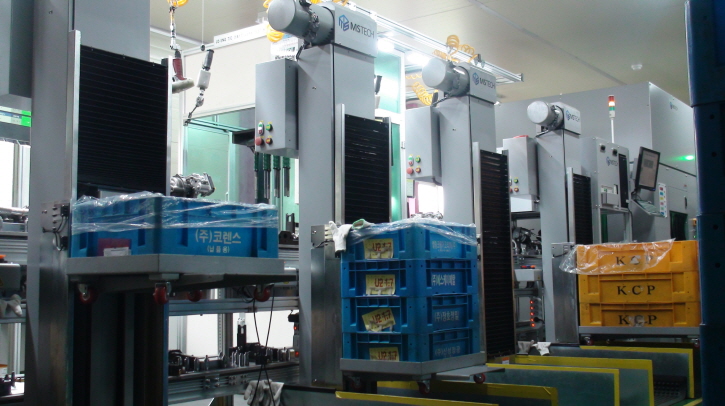

  • Material Box Lift
    Automatic Material Box Lift is used for operator’s fatigue and convenience. 5~6 boxes can be stacked and lift up as much as single box height automatically.
  • MES Interface
    Line Management System(LMS) & Data Base(DB) can be interlocked with customer’s network for MES.
