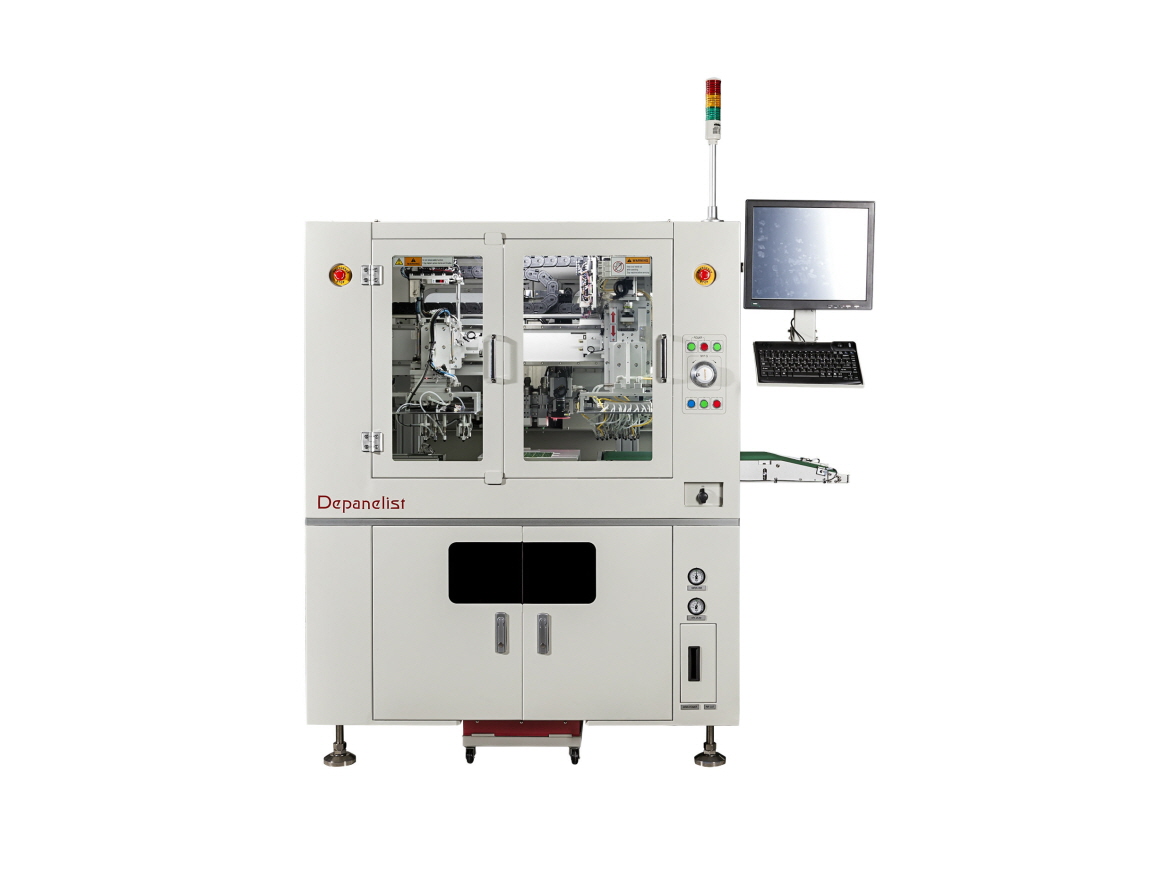

iDPL-S (Single) Single In-Line Router

Features

  • High Generality Inline Router
  • Dual Spindle Head as Standard
  • Independently Dual Transfer for Minimizing Idle Time
  • High Efficiency Dust Collecting System for 0% Remaining Dust
  • Quick & Easy Programming with Camera & MPG/Jog

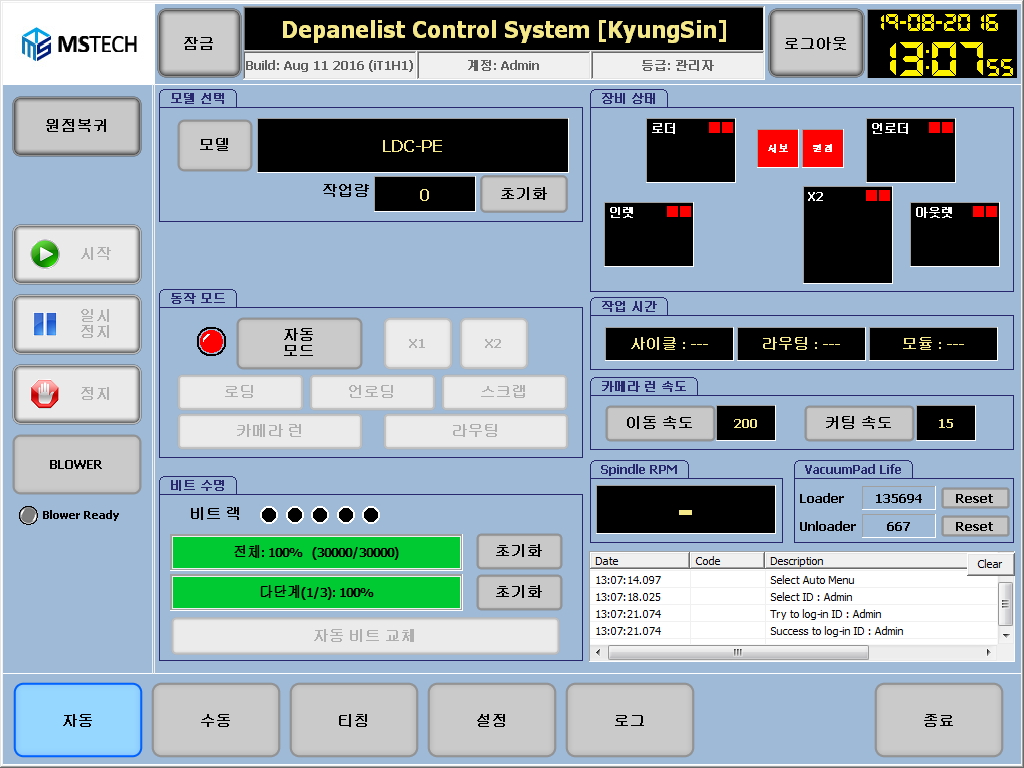

  • User Friendly GUI Based on IPC & Touch LCD
  • Compact Design

Options

  • Barcode Interlock & MES Interface
  • Pallet Transporting System
  • Auto Tray Function System
  • ID Verification with Fingerprint

Features

  • Single Inline Router
    It has high versatility and expandability for fulfilled any requirement of costumer.

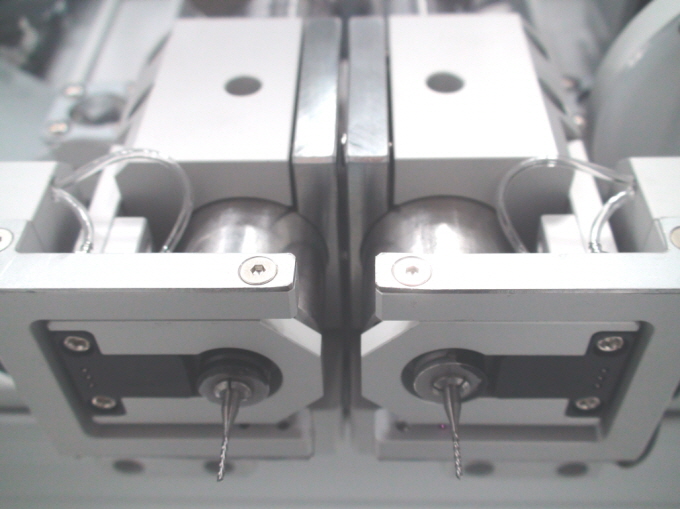

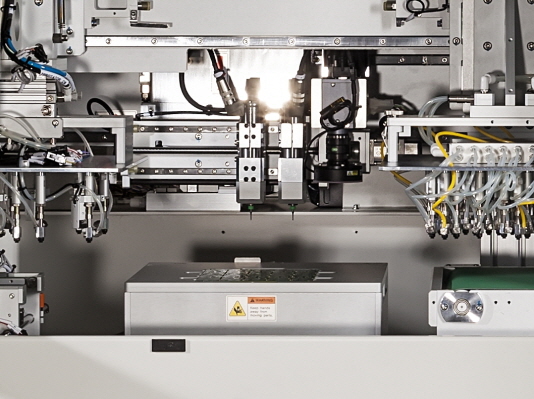

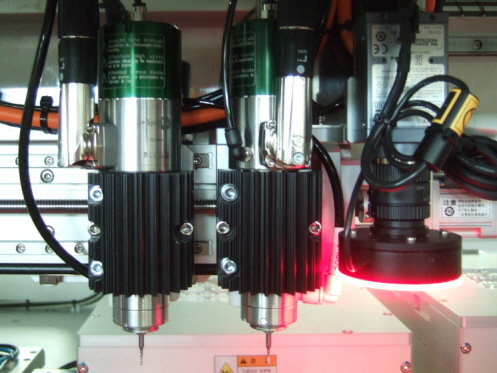

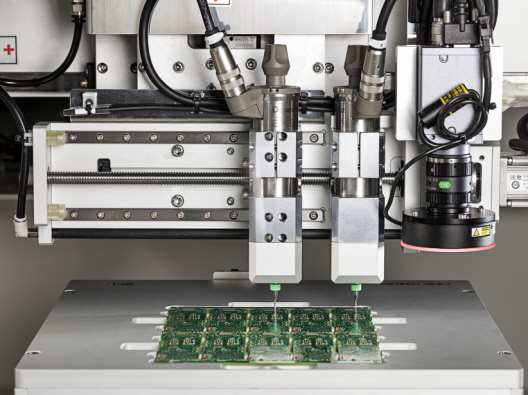

  • Dual Spindle Head
    It is able to be fast cutting speed & high performance by applied 2 spindle head as standard. And do auto adjustment spindle width by model. (Option, up to 3~4 spindles)

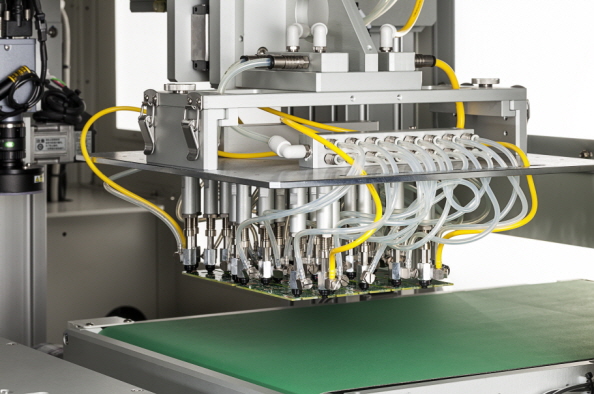

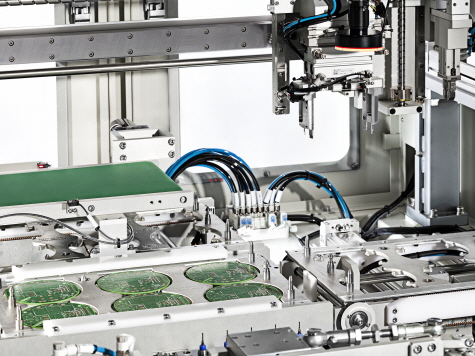

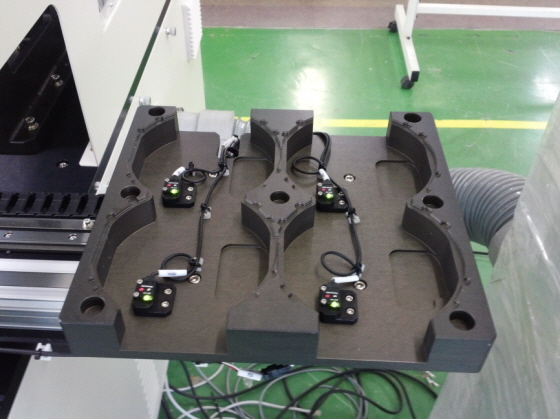

  • Magneto Vacuum Type Loader/Unloader
    It is able to be model change quickly & easily by applied magneto vacuum type loader & unloader port.

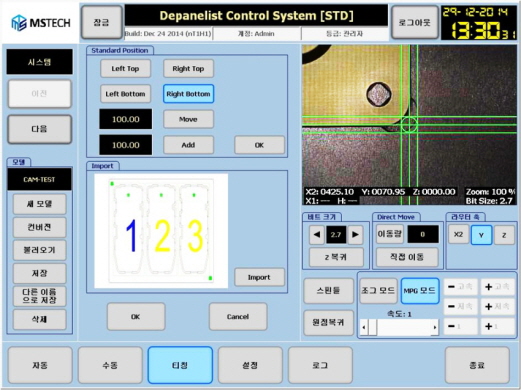

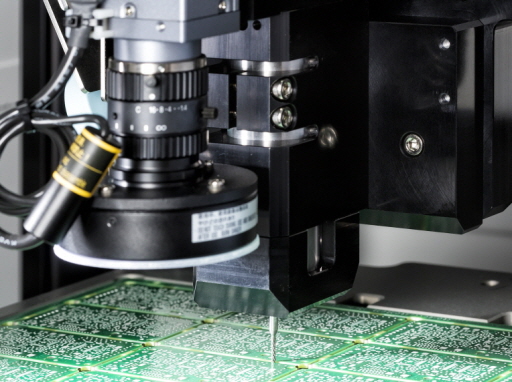

  • Camera Teaching
    It is available teaching accurately & easily to use camera
  • Compact Design
    It is the most compact design for securing customer space

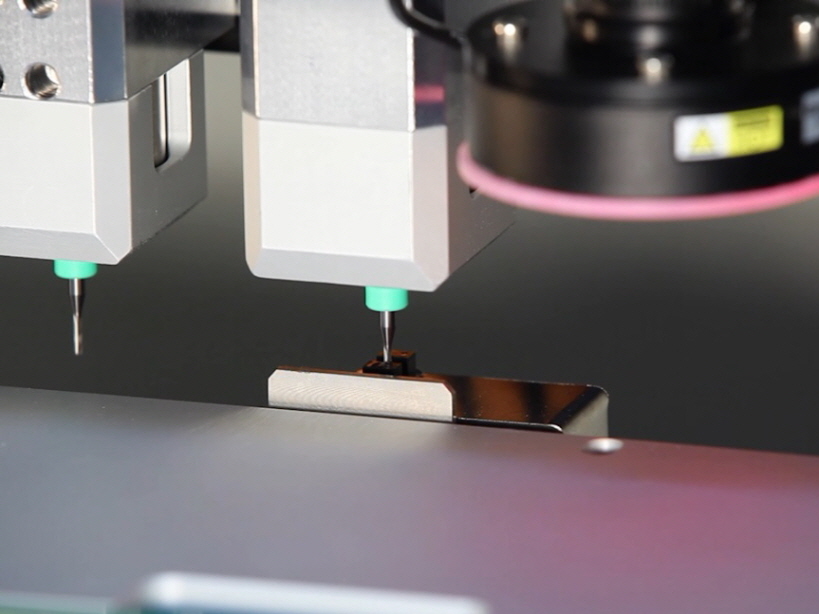

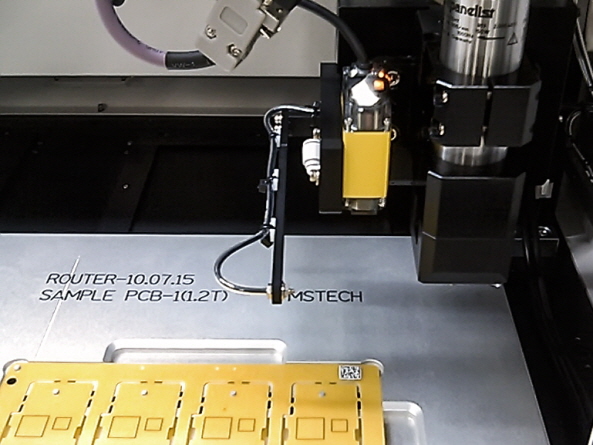

  • Bit Broken & Slip Down Detection
    Bit detection sensor is standard installation for sounded alarm when bit broken & slip down.
  • Ionizer
    It is standard installation for protected PCB and efficient removing dust(area ionizing type)
  • Loader Rotating
    Loader is rotated 90 or 180 degree by model for fixing PCB on the jig or cutting area.
  • Multi-Bit Function & Life Time Management
    It is using multi-bit by 2~3 level for reducing consumable cost of customer and sounding alarm when bit is on each level by life time management.

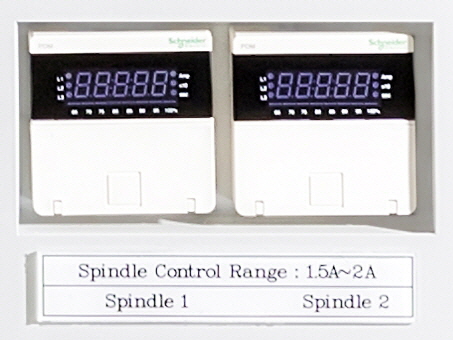

  • Spindle Mate
    Inner EOCR is standard installation for protecting PCB damage as from cutting overload condition by detecting current of spindle motor with real time.

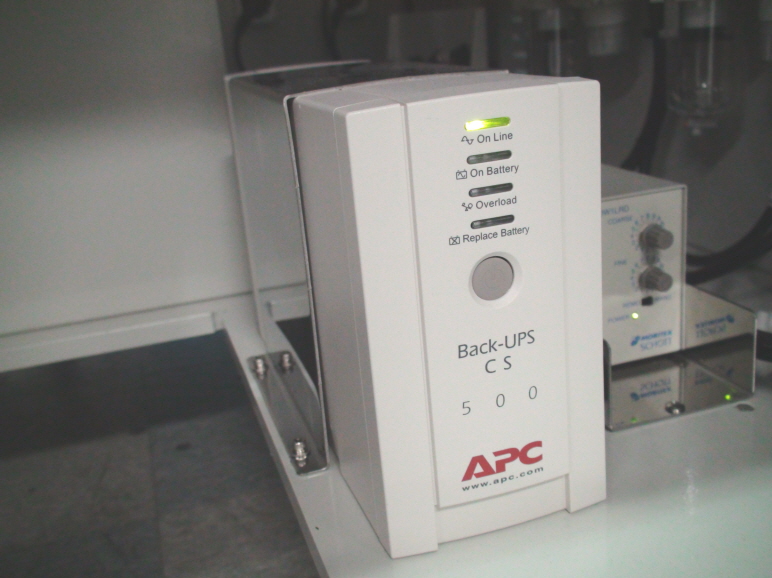

  • UPS
    It is as installed as standard, and protecting data and equipment from line shout down.
    (IPC covering capacity)

Options

  • Barcode Interlock & MES
    It is used vision system or scanner to read the 1D/2D barcode for MES function with costumer's network
  • Pass/Fail PCB Separation
    It is separating and releasing the fail PCB by ng conveyor, after getting data of NG PCB from front equipment by MES.

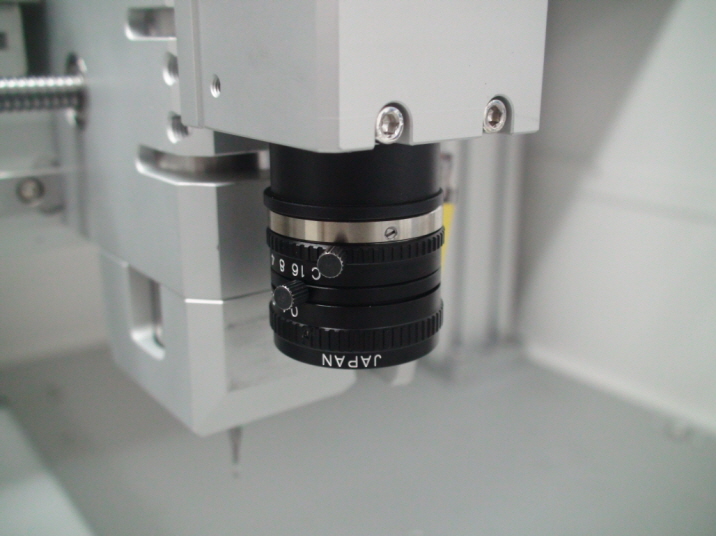

  • Vision System
    It is able to detect different model and loading fail, and available fiducial checking.

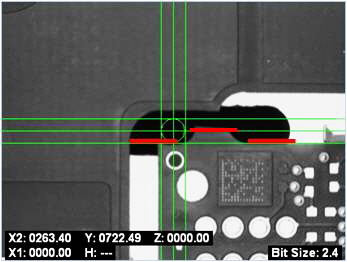

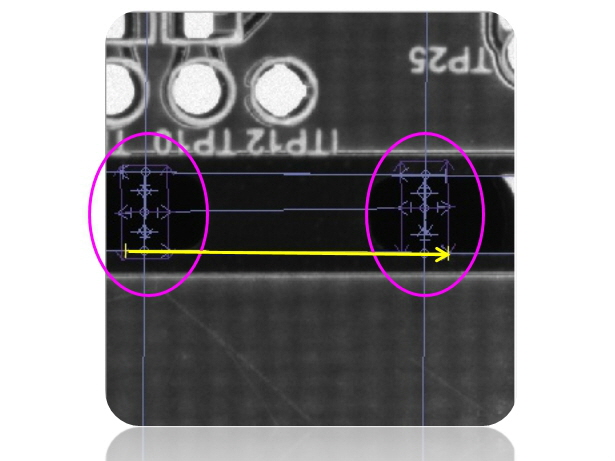

  • Edge Detection Function
    As powerful vision system function, the both sides PCB edges beside a cutting tab are detected and compensate cutting position by tolerance of boards.

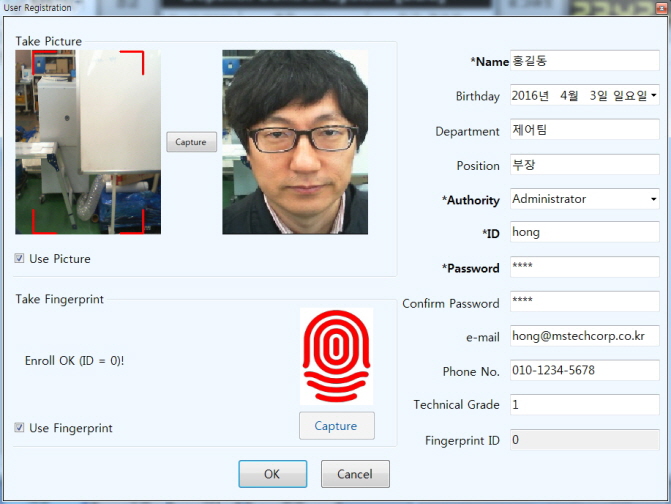

  • ID Verification with Fingerprint
    It is available to be high security user management and easy logging by registered and appreciated user fingerprint.
  • Dimensional Inspection
    It is inspecting cutting measure & burr after cutting, and able to implement additional cutting.
  • CAD/CAM Data Conversion
    It is converted CAD/CAM data to routing cutting data then able to do offline programing.
  • Real-Time Spindle RPM Monitoring
    It is Protected PCB with Sounding Alarm when Spindle PRM is Declining by Detecting it in Real Time.

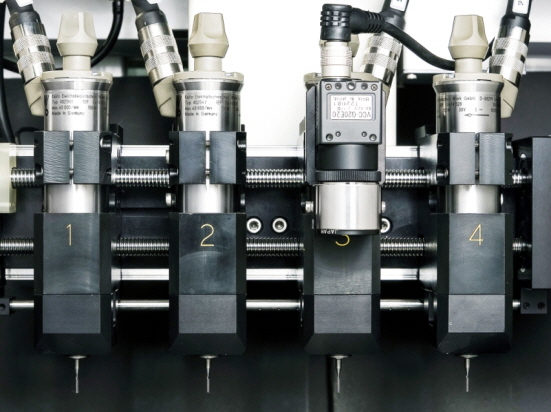

  • Auto Width Adjustment for Multi-Spindle(AWA)
    It is able to install 3~5 spindles in depending PCB array. Each spindle is able to do auto width adjustment(AWA)
    (Patent)

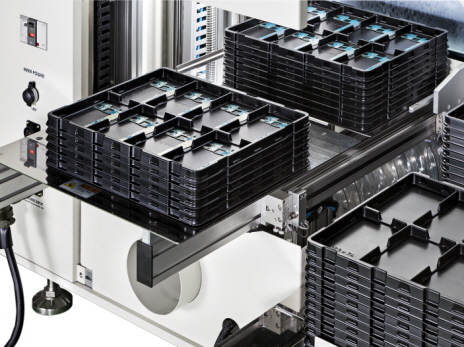

  • Auto Tray Function
    It is loaded PCB after cutting it to tray or slot box by automatically, also auto changing and stacking tray or slot box when PCB is full in there.
  • Pallet Transporting System
    After cutting PCB, it is released seated on the pallet from costumer.
  • Shuttle Jig Outlet
    It is releasing PCB by seated on the shuttle jig for automation of next equipment.

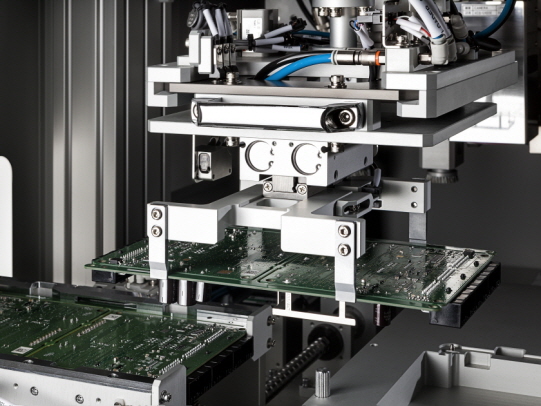

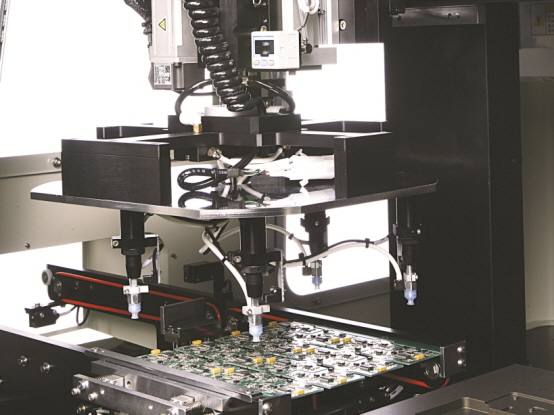

  • Gripper Unloader
    If there is restriction of unloading with heavy PCB or high component, it is able to use gripper type of unloader.
  • 500W Spindle
    It is implemented more powerful performance by high capacity spindle(500W)

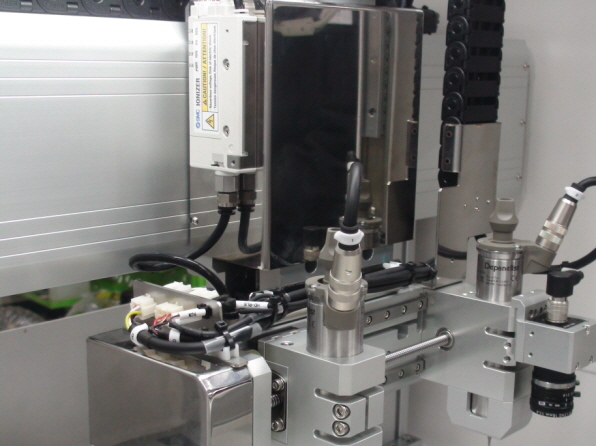

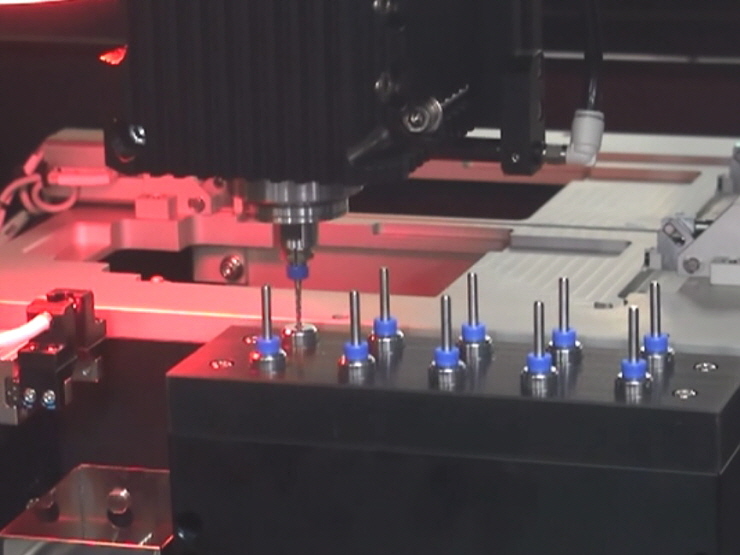

  • Auto Tool Changing System(ATC)
    When life of bit is almost done or it is broken, it is changed the bit automatically. (Available with 4033 and 4041 spindle only)

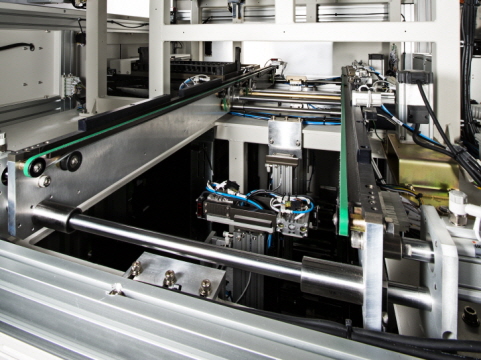

  • Auto Conveyer Width Adjustment
    It is saved model changing time by using motor to save the parameters of width pitch.

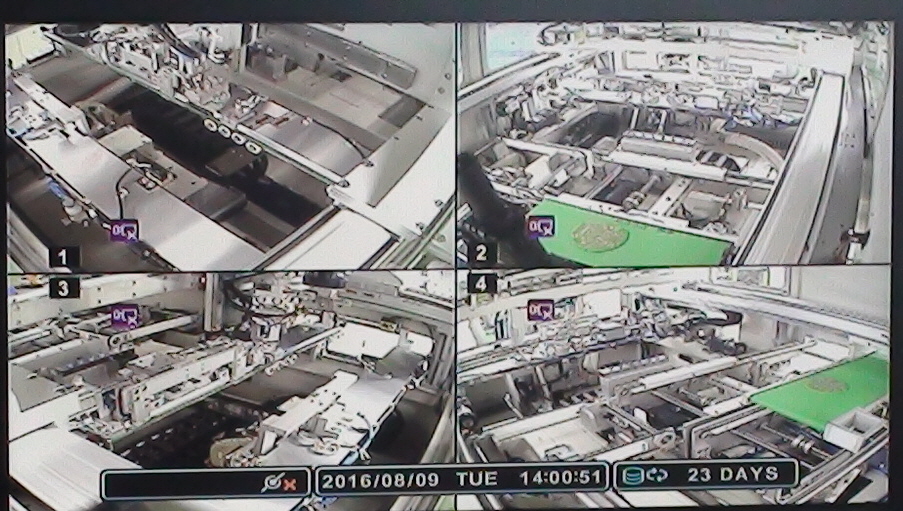

  • Visual Data Log System (Visual Recorder)
    It is able to check phenomenon & cause by video recoding & saving inside of equipment when issue is happened during it is working.

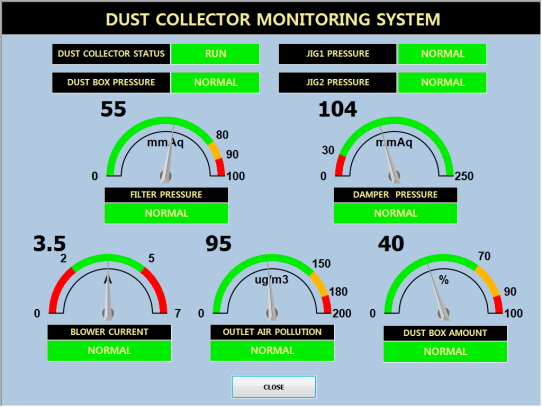

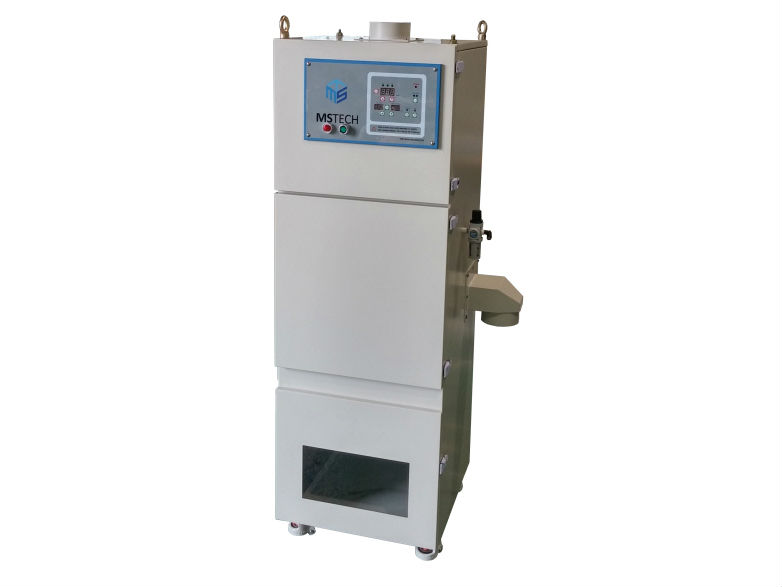

  • Real-Time Self-Diagnosis Dust Collector
    It is able to do self-diagnosis about pressure, damage & pollution level inside dust collector and sound alarm to router(patent-pending)

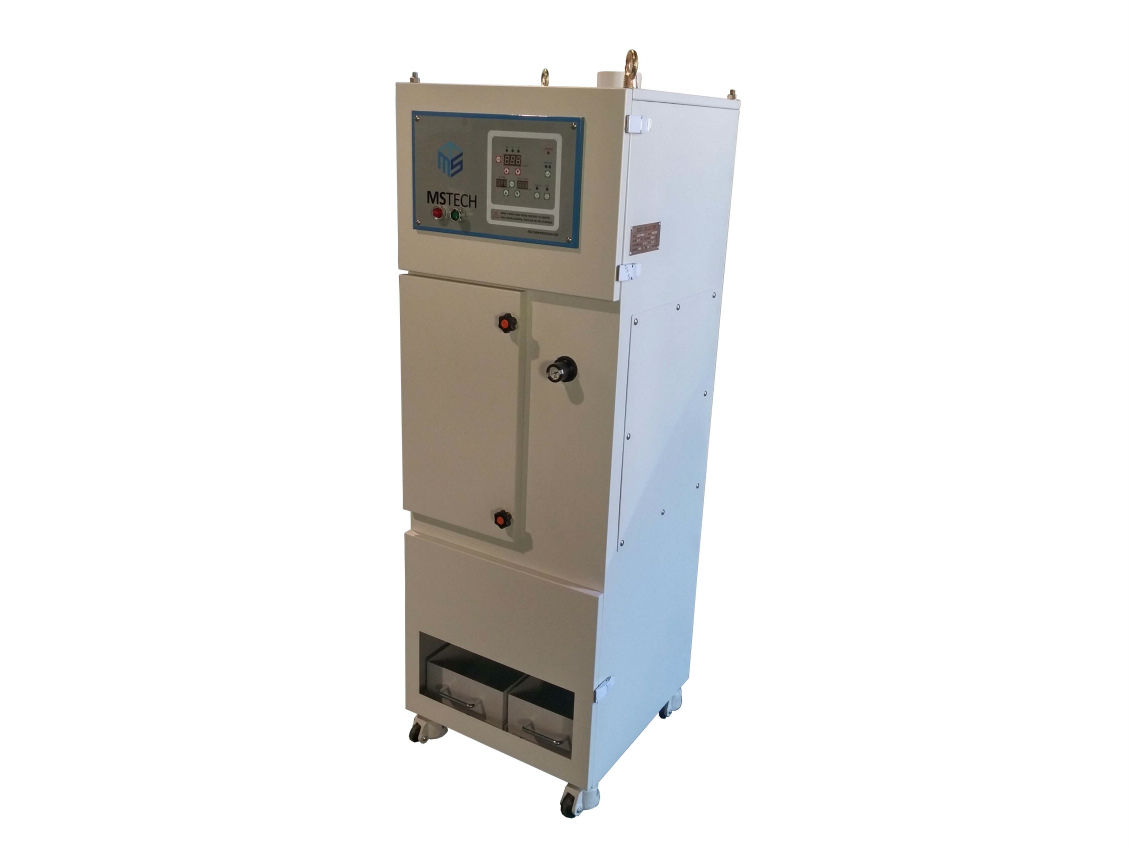

  • Filter+Cyclone Complex Dust Collector
    It is able to use filter semi-permanently with applied cyclone, and install plastic bag.
  • Easy Handling Dust Collector
    It is able to use the plastic bag for disposing dust cleanly & easily.

Specifications(Standard)

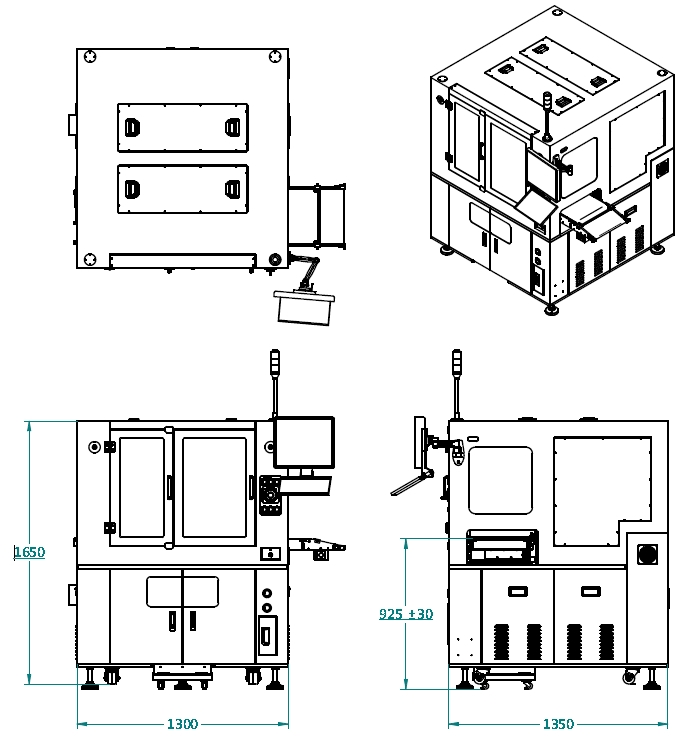

Layout
