Home Products > PCB Depaneling Router

nDPL-T (Twin) Twin Off-Line Router

Features

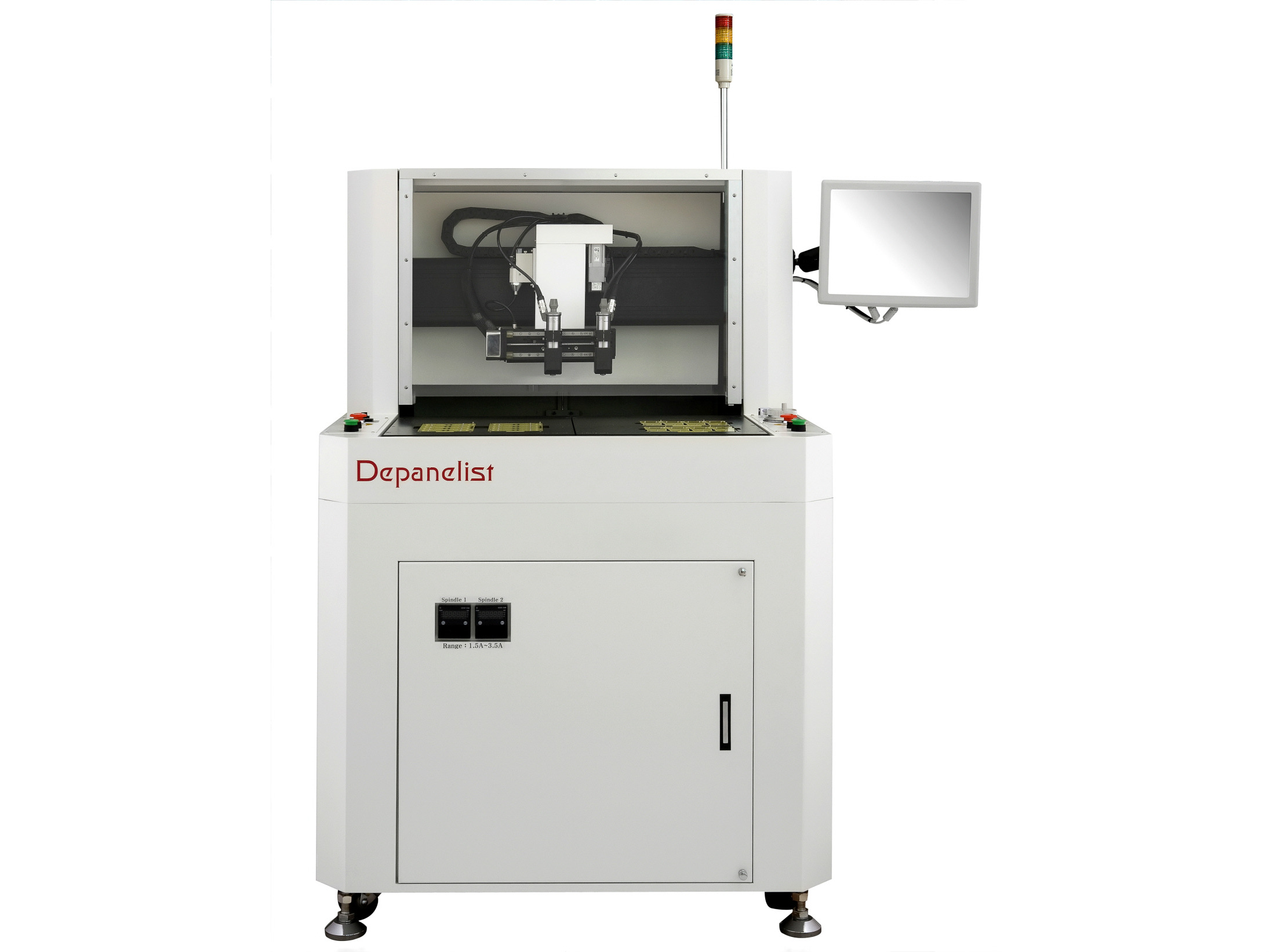

  • Twin Table Off-Line Router
  • Dual Spindle as Standard
  • High Efficiency Dust Collecting System for 0% Remaining Dust
  • Quick & Easy Programming with Camera & MPG/Jog
  • User Friendly GUI Based on IPC & Touch LCD
  • Compact Design

Options

  • Vision System
  • Barcode Interlock & MES Interface
  • Bit Detection System
  • ID Verification with Fingerprint

Features

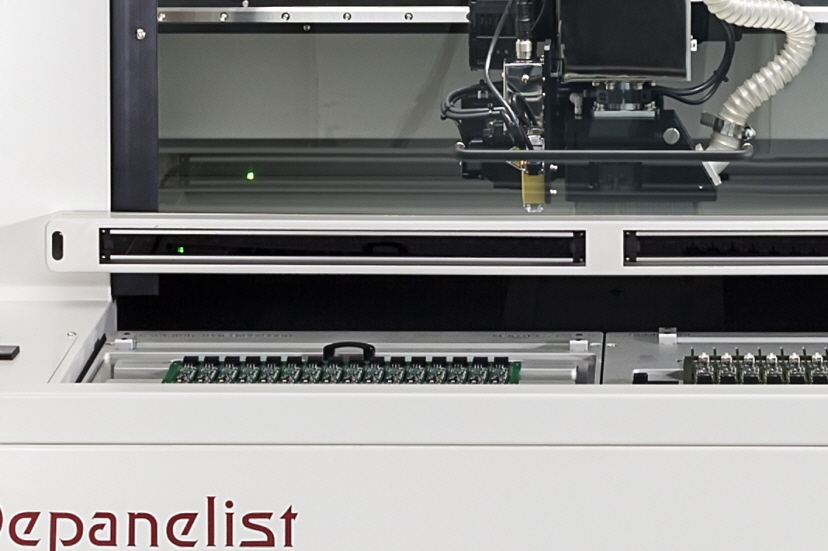

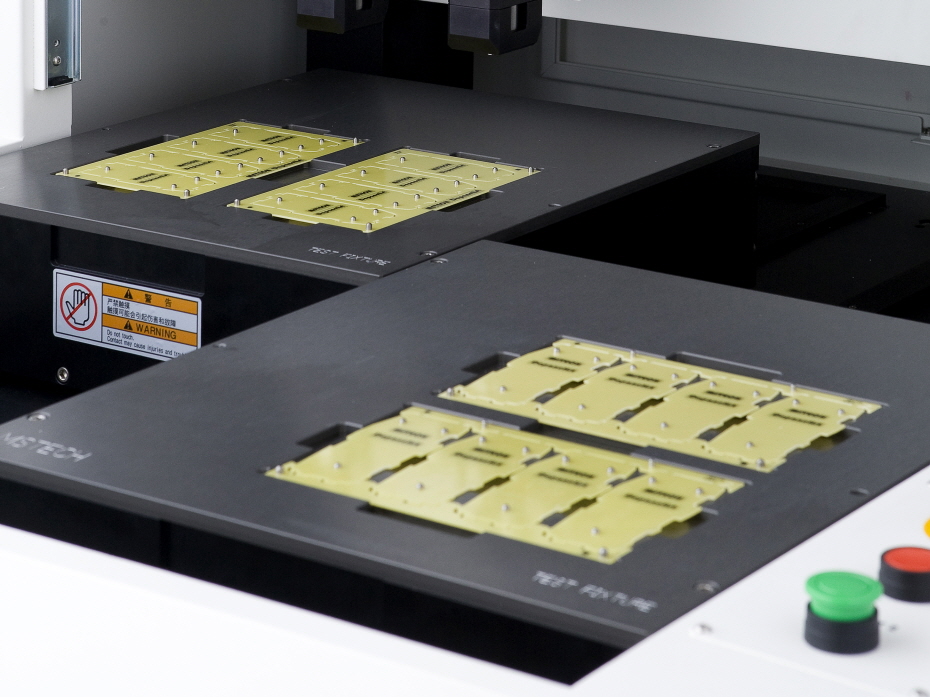

  • Twin Shuttle Table
    It is able to be minimum idle time for loading/unloading PCB with applied twin table.

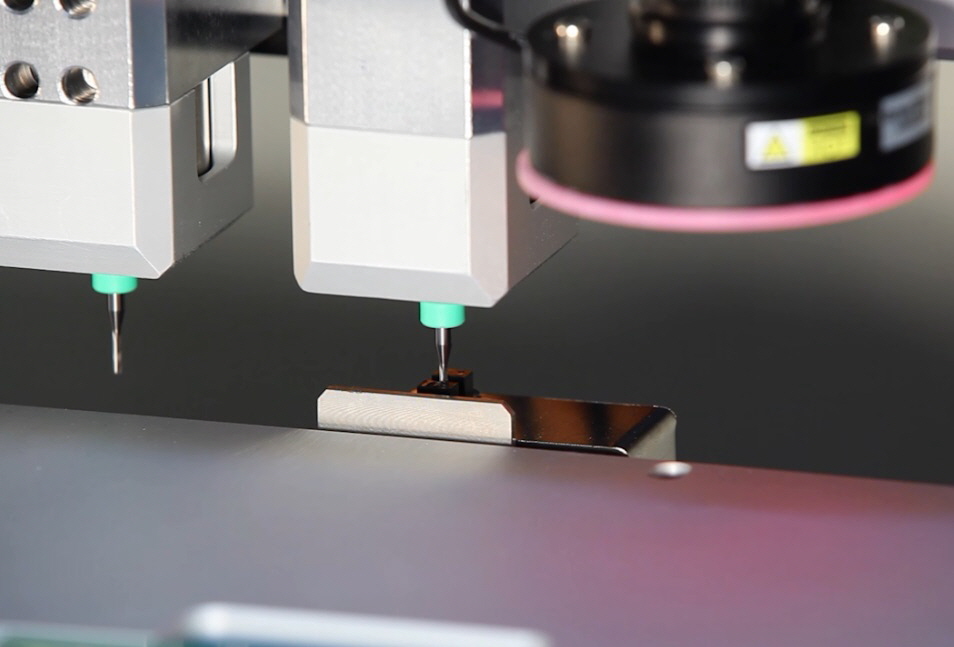

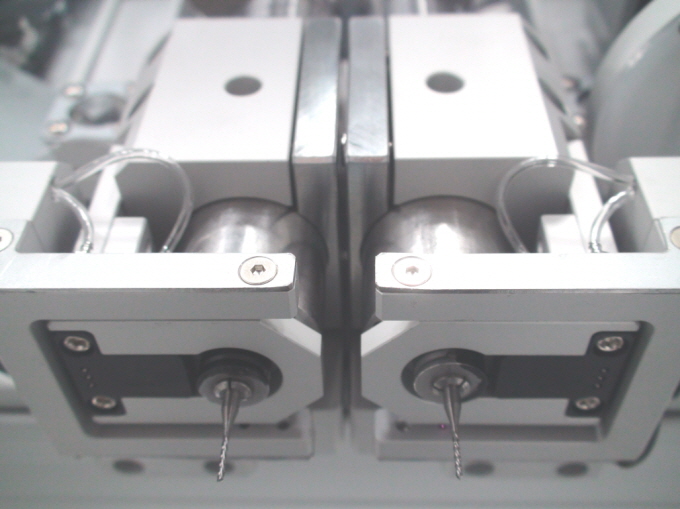

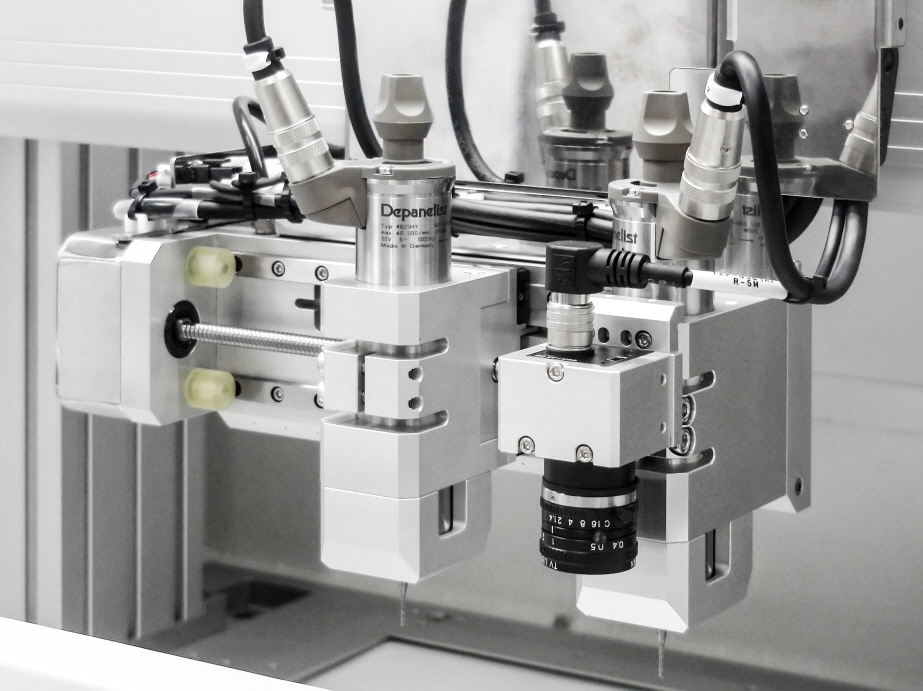

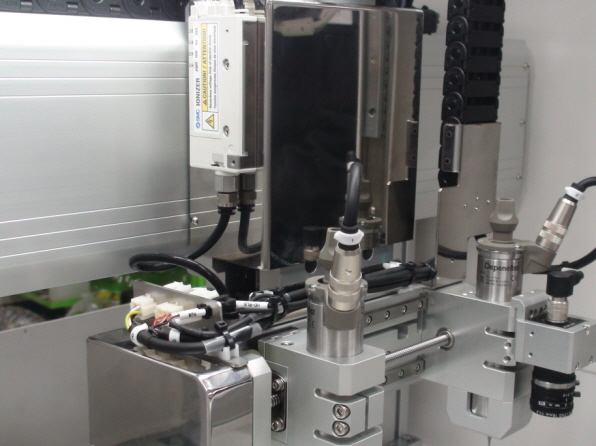

  • Dual Spindle Head

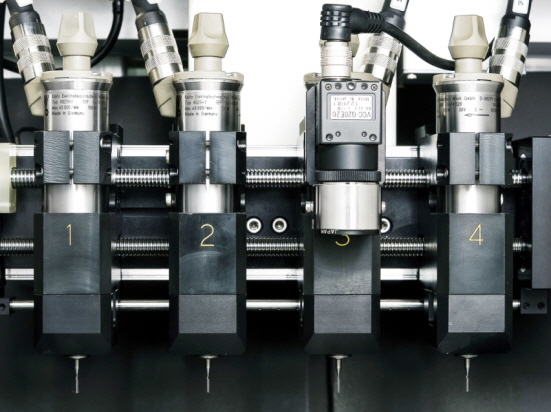

    It is able to be fast cutting speed & high performance by applied 2 spindle head as standard. And do auto adjustment spindle width by model. (Option, up to 3~4 spindles)
  • Operator Reduction
    It is reduced the operator & management expense to apply multi head as efficacy of 2 machines.
  • Camera Teaching
    It is the most compact design for securing customer space
  • Compact Design
    It is the Most Compact Design for Securing Customer Space
  • Multi-Bit Function & Life Time Management
    It is using multi-bit by 2~3 level for reducing consumable cost of customer and sounding alarm when bit is on each level by life time management.
  • Ionizer
    It is standard installation for protected PCB and efficient removing dust(area ionizing type)

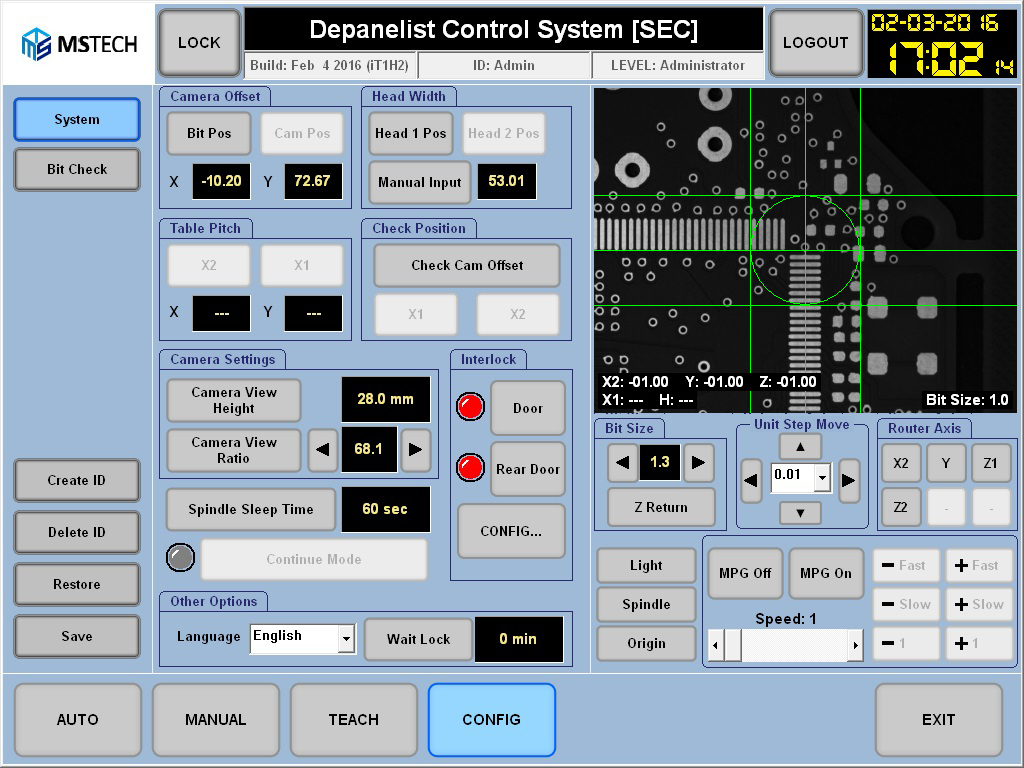

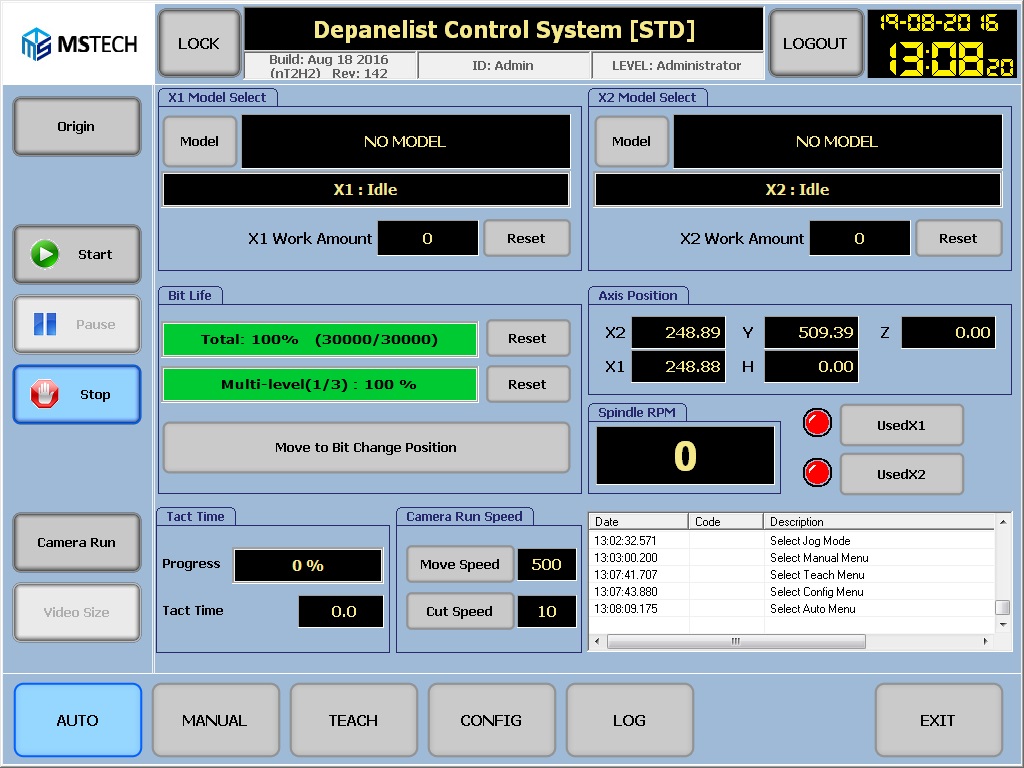

  • Full Graphic Interface
    It is easy & comfortable operation by applied GUI base on windows

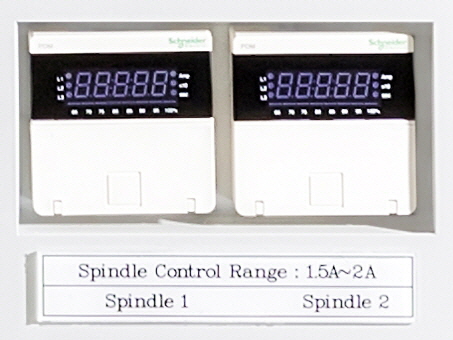

  • Spindle Mate(Self-diagnosis)
    It is prevented the PCB damage caused by spindle with detecting the spindle status by real-time.
  • Safety Sensor
    It is applied for safety of operator of loading/unloading PCB.

Options

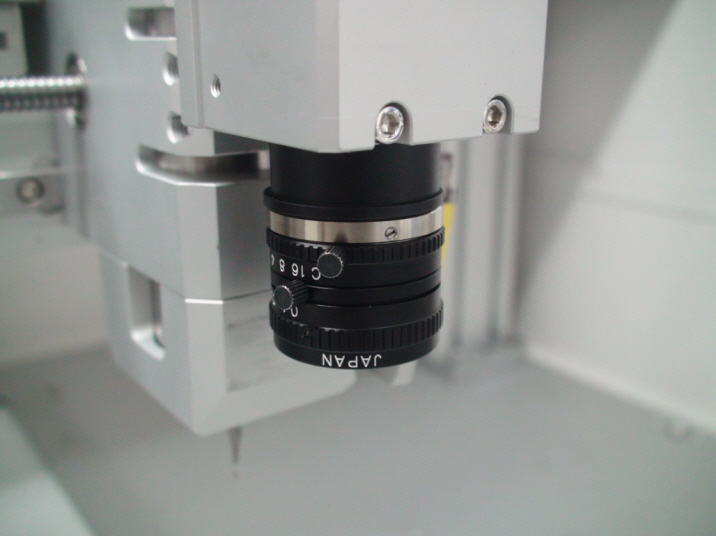

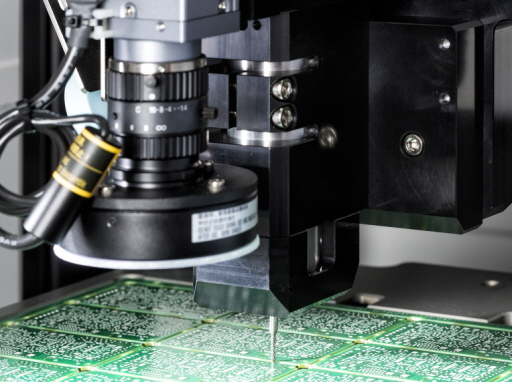

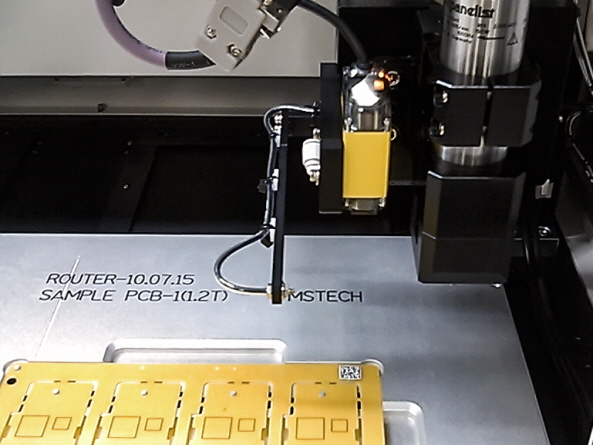

  • Vision System
    It is able to detect different model and loading fail, and available fiducial checking.
  • Barcode Interlock & MES
    It is used vision system or scanner to read the 1D/2D barcode for MES function with costumer's network

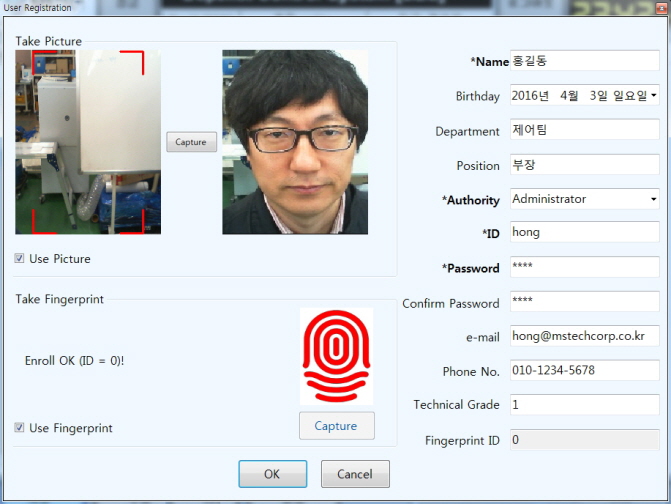

  • ID Verification with Fingerprint
    It is available to be high security user management and easy logging by registered and appreciated user fingerprint.

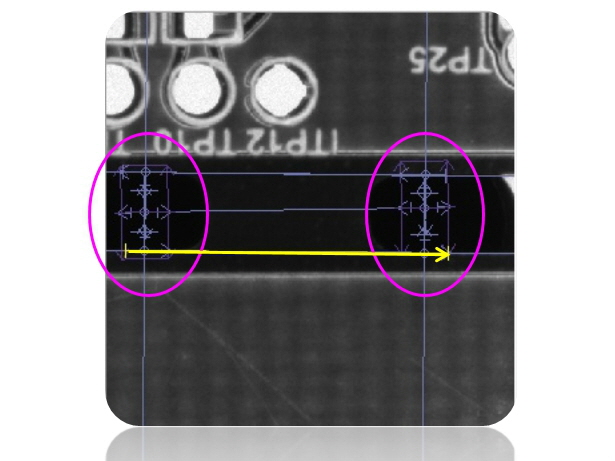

  • Edge Detection Function
    As powerful vision system function, the both sides PCB edges beside a cutting tab are detected and compensate cutting position by tolerance of boards.

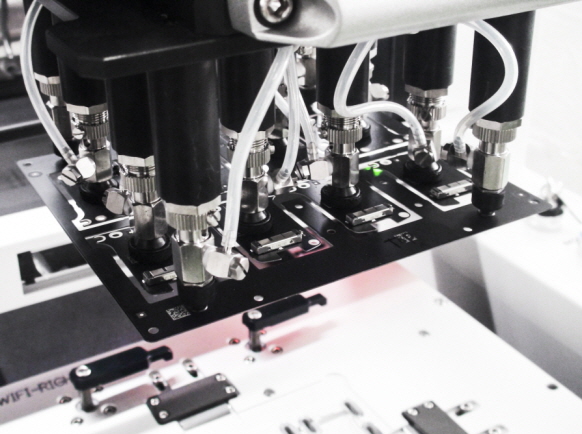

  • PCB Unloader
    It is using the vacuum type unloader to pick PCB up from jig for avoiding operator mistakes unloading PCB.
  • Bit Detection Sensor
    It sounds the alarm when detecting bit broken automatically

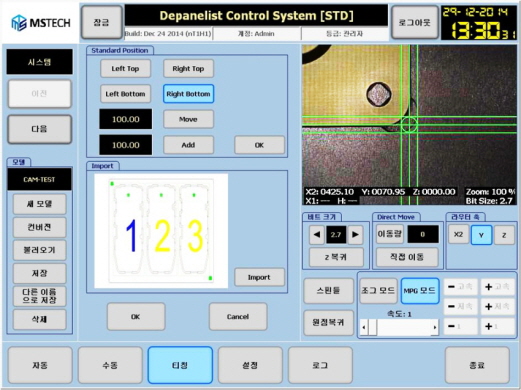

  • CAD/CAM Data Conversion
    It is converted CAD/CAM data to routing cutting data then able to do offline programing.
  • Real-Time Spindle RPM Monitoring
    It is protected PCB with sounding alarm when spindle PRM is declining by detecting it in real time.
  • Auto Width Adjustment for Multi-Spindle(AWA)
    it is able to install 3~5 spindles in depending PCB array. each spindle is able to do auto width adjustment(AWA)
    (patent)

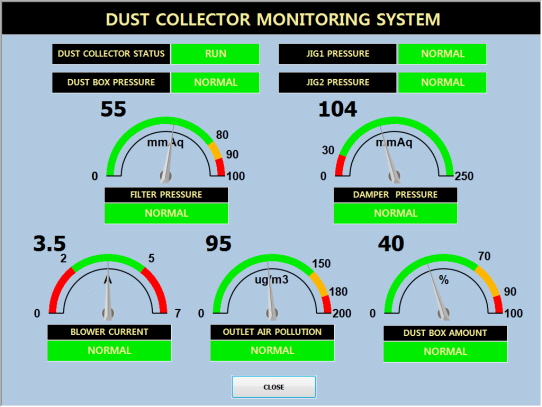

  • Real-Time Self-Diagnosis Dust Collector

    It is able to do self-diagnosis about pressure, damage & pollution level inside dust collector and sound alarm to router(patent-pending)

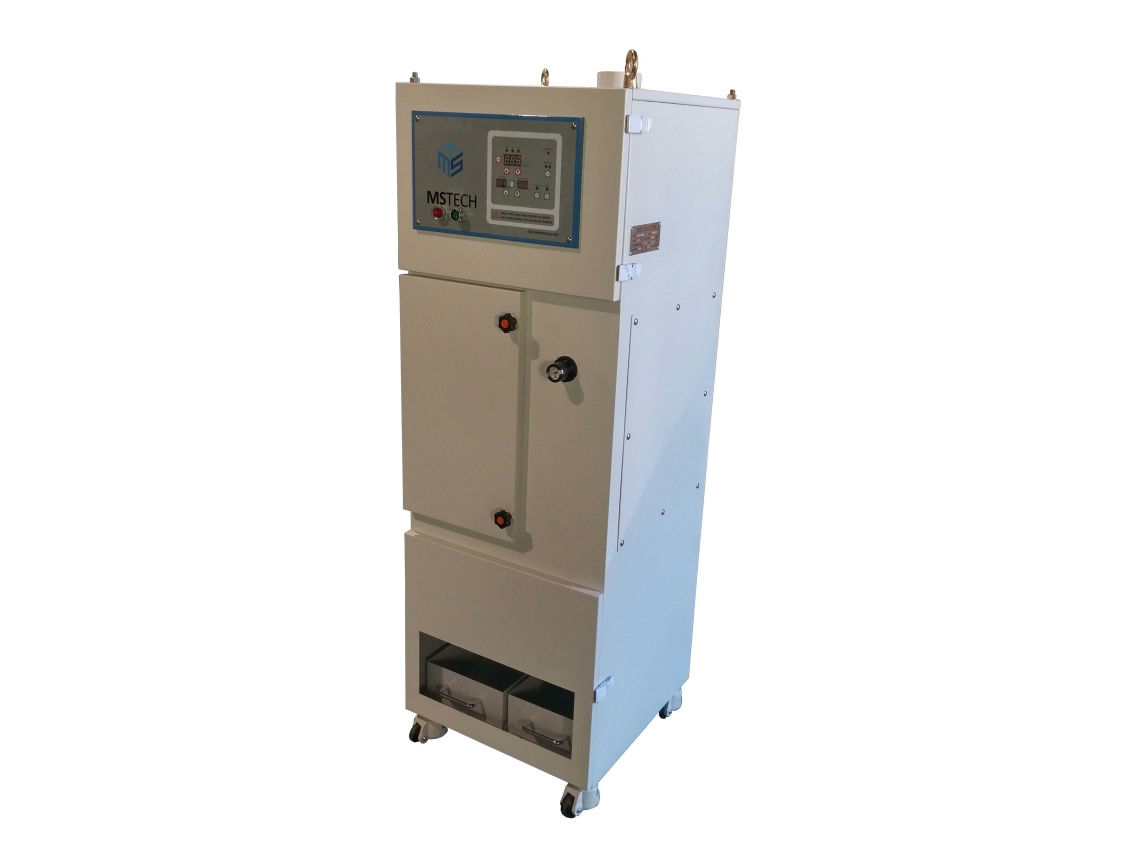

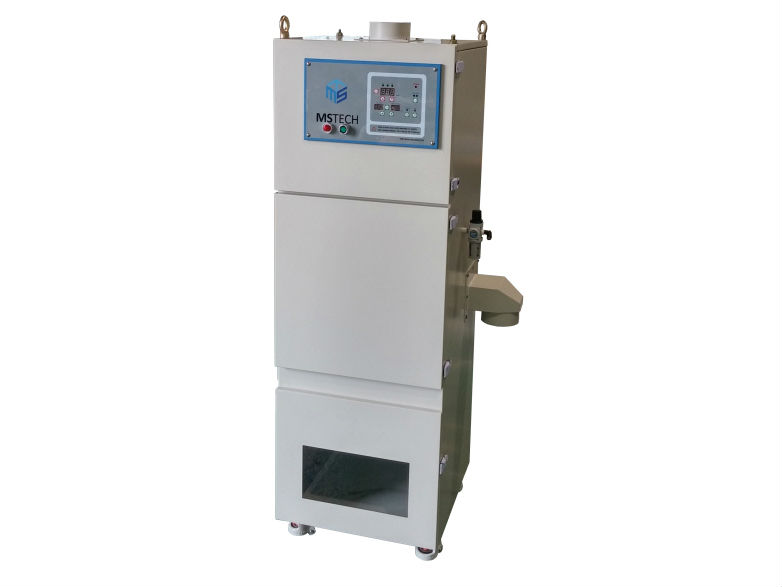

  • Filter+Cyclone Complex Dust Collector
    It is able to use filter semi-permanently with applied cyclone, and install plastic bag.
  • Easy Handling Dust Collector
    It is able to use the plastic bag for disposing dust cleanly & easily.

Specifications(Standard)



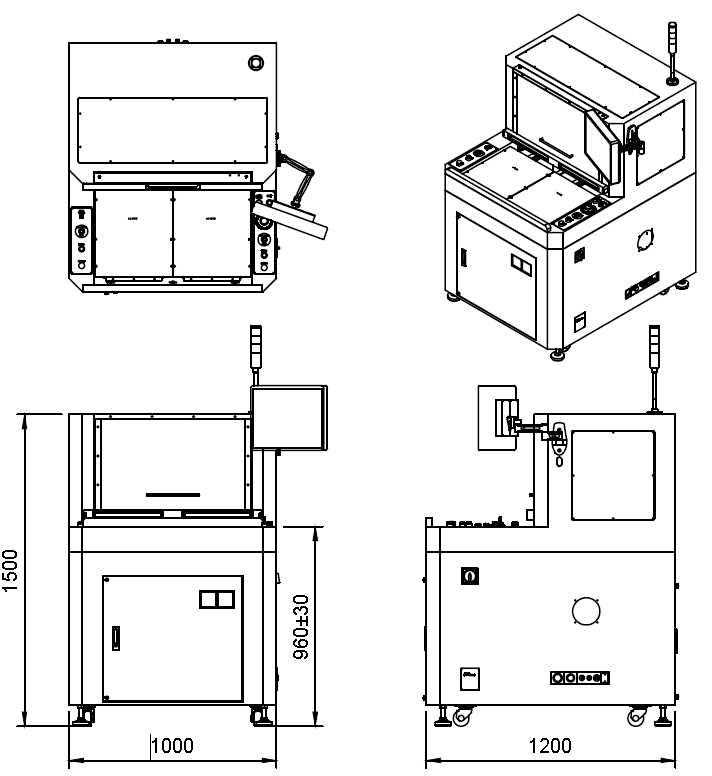

Layout



Video

List
