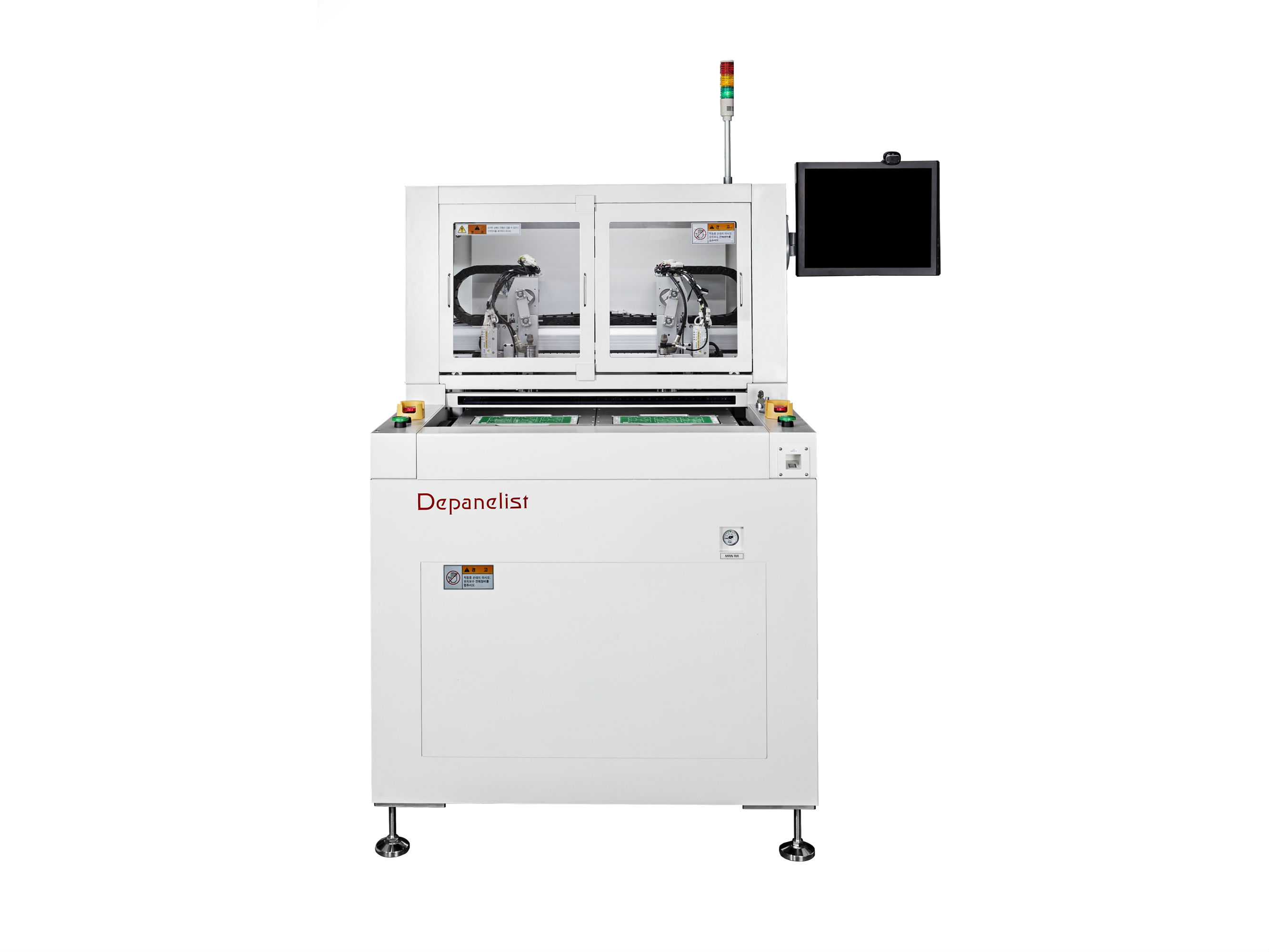

Moebius Moebius Infinite Routing Off-Line Router

Features

  • Twin Table Infinite Routing Off-Line Router
  • 1+ 1 Mode (Single)
  • 2 x 2 Mode (Dual)
  • Moebius Mode (Transform)
  • Ultra High Speed Z-Axis Up/Down
  • Independently Dual Z-Axis
  • Full-Duplex Open Main Door

Options

  • Real-Time Spindle RPM Monitoring
  • Vision System
  • Barcode Interlock & MES Interface
  • Bit Detection System
  • ID Verification with Fingerprint

Features

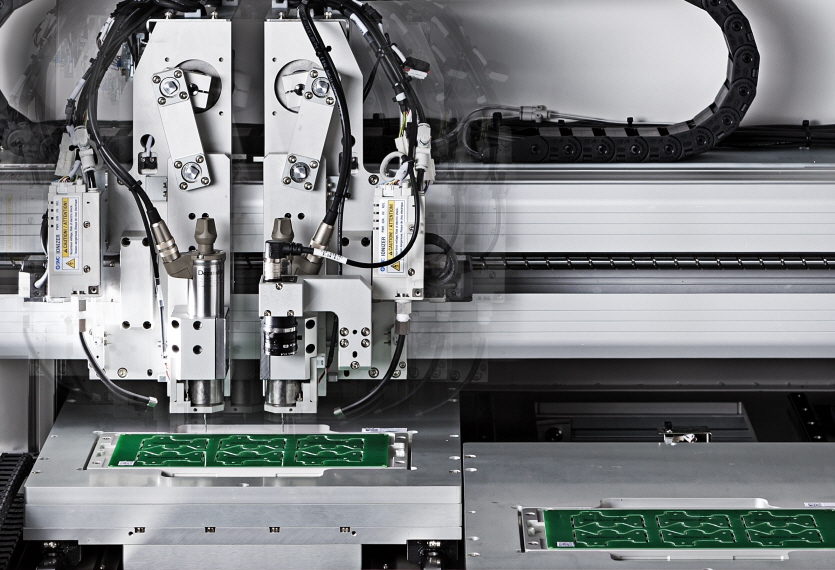

  • 1+ 1 Mode (Single)
    Each spindle is performed to independent cutting on each table independently. And it has 2 single table routers
  • 2 x 2 Mode (Dual)

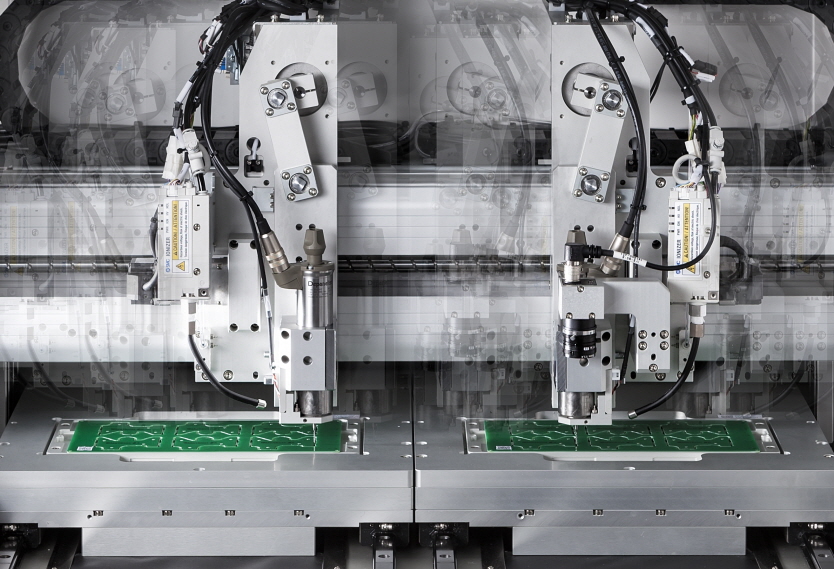

    It is able to cut by both spindles as typical patent of MSTECH. And both spindles are able to do auto pitch adjustment. Also available cross-processed on the both tables.

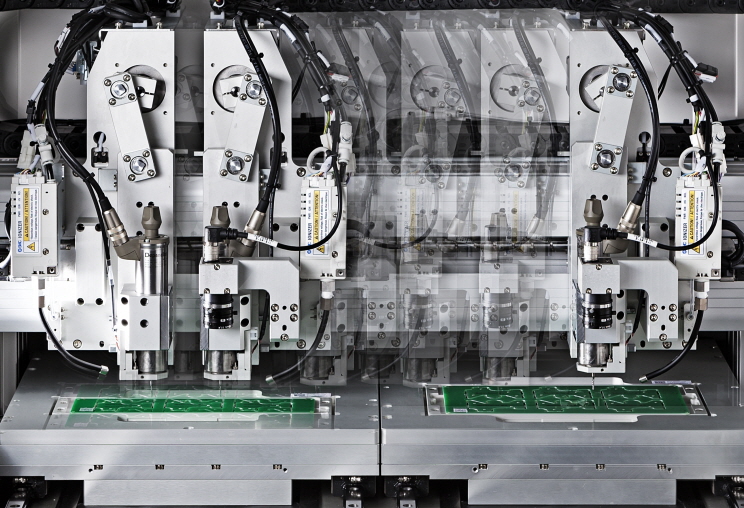

  • Moebius Mode (Transform)
    It is performed to cut with auto transformation by 2X2 & 1X1 mode intelligently. And it is made better performance up to 25~30% compare with the fast 2X2 mode when cutting odd array panel.

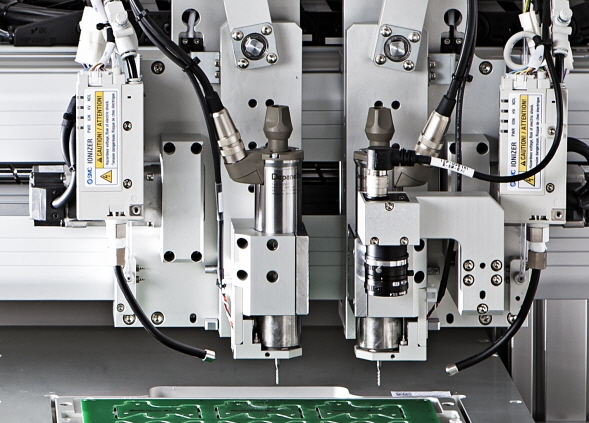

  • Ultra High Speed Z-Axis Head
    It is improved the cycle time & work capacity greatly with developed ultra high speed z-axis and applied for reducing up/down speed during cutting process innovatively
  • Full-Duplex Open Main Door
    Main door is able to open by full-duplex which is very comfortable for internal accessing during maintenance.
  • Operator Reduction
    It is reduced the operator & management expense to apply multi head as efficacy of 2 machines.

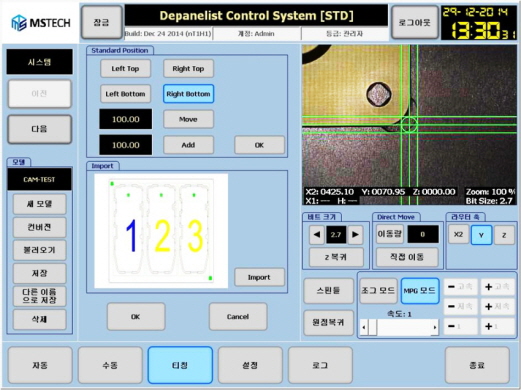

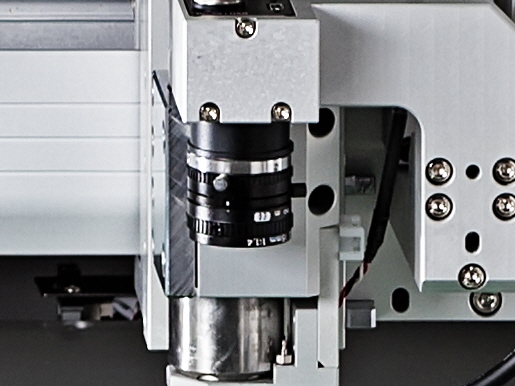

  • Camera Teaching
    It is available teaching accurately & easily to use camera
  • Compact Design
    It is the most compact design for securing customer space
  • Multi-Bit Function & Life Time Management
    It is using multi-bit by 2~3 level for reducing consumable cost of customer and sounding alarm when bit is on each level by life time management.

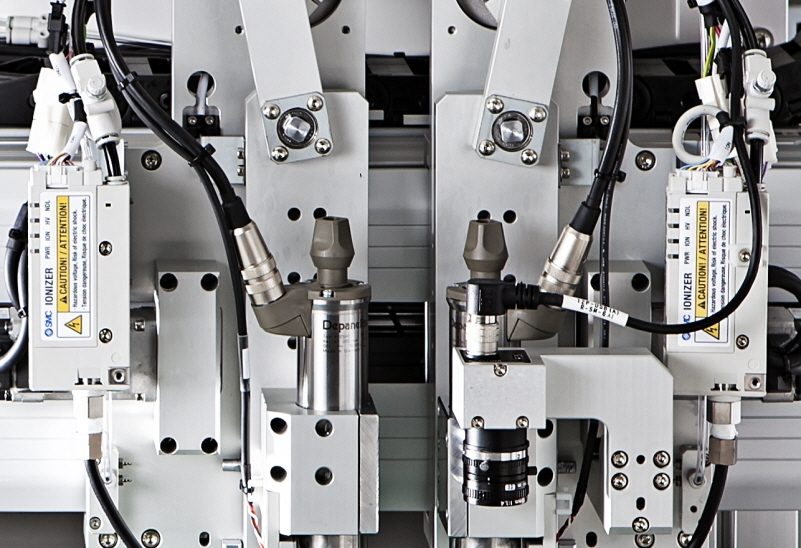

  • Ionizer
    It is standard installation for protected PCB and efficient removing dust(area ionizing type)

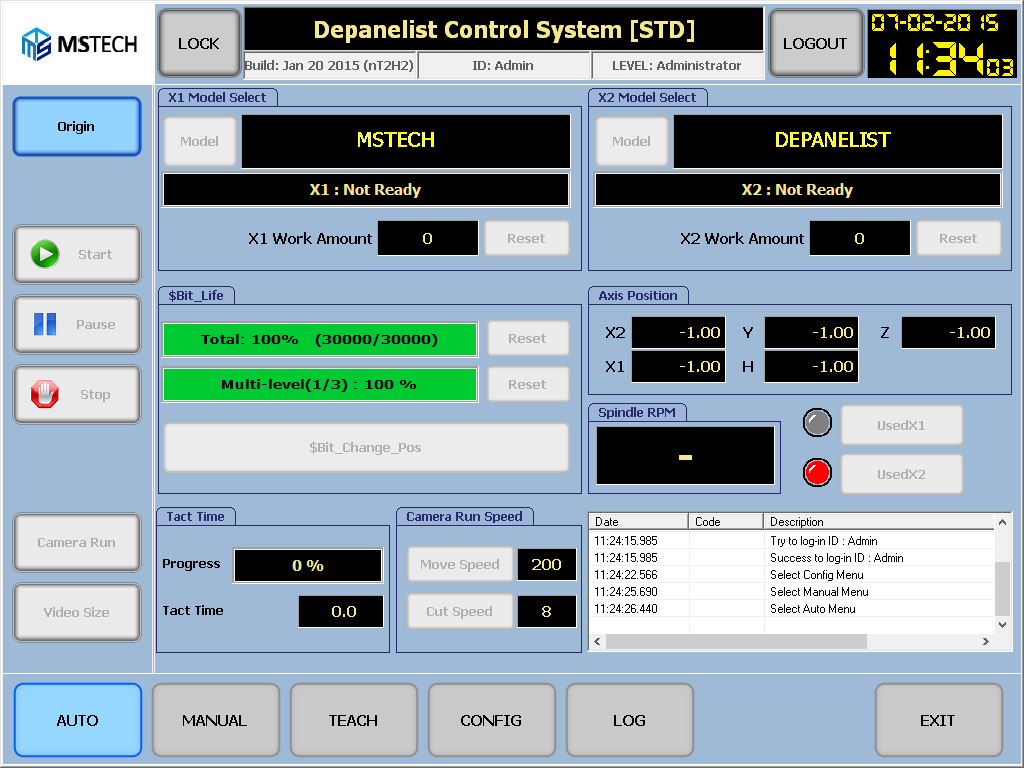

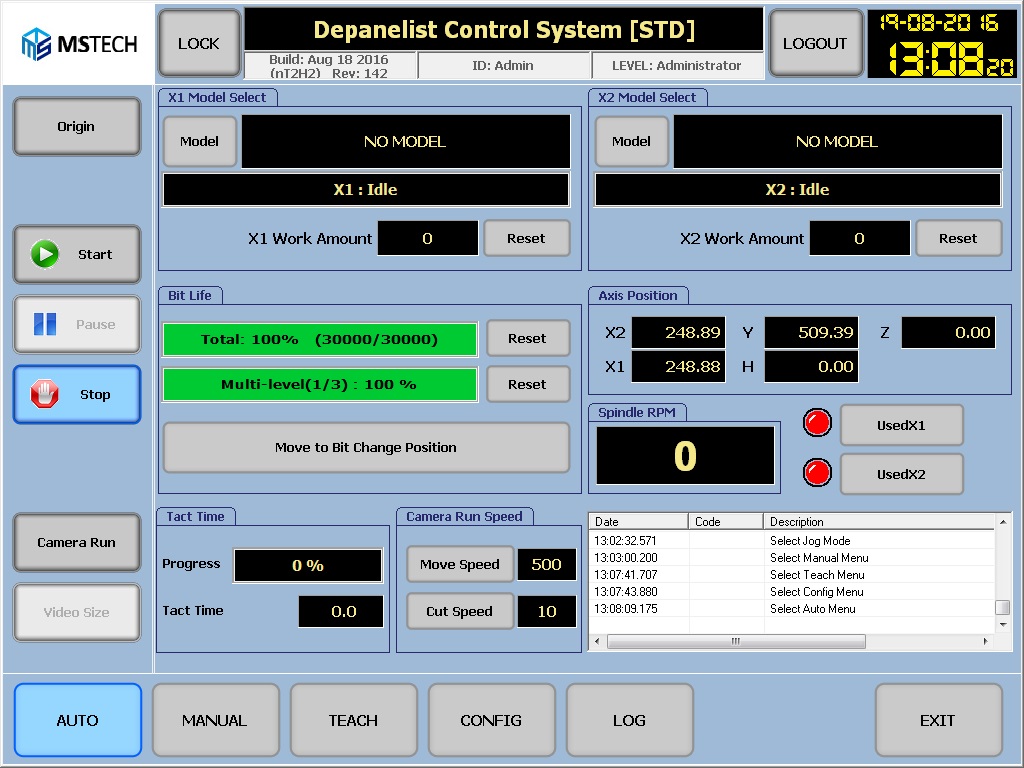

  • Full Graphic Interface
    It is easy & comfortable operation by applied GUI base on windows
  • Eliminated Blind Spot Safety Sensor
    It is applied for safety of operator of loading/unloading PCB.

Options

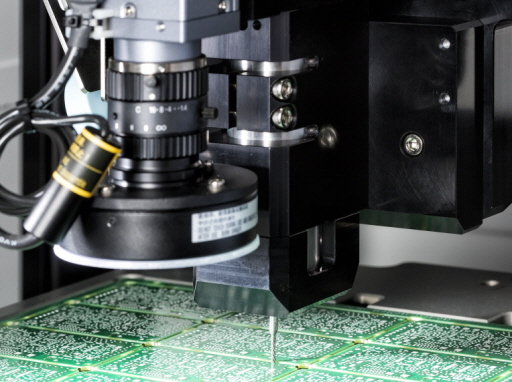

  • Vision System
    It is able to detect different model and loading fail, and available fiducial checking.
  • Barcode Interlock & MES
    It is used vision system or scanner to read the 1D/2D barcode for MES function with costumer's network

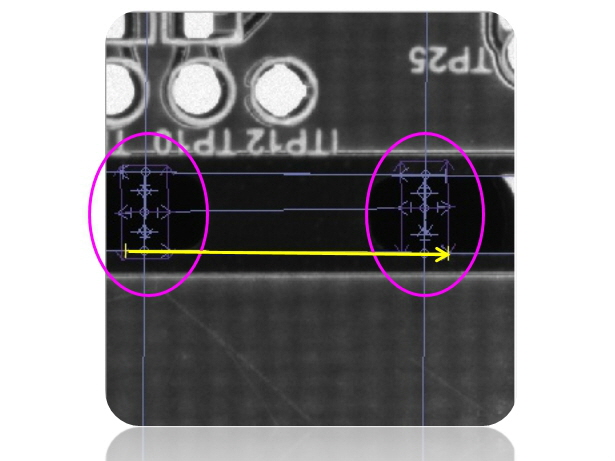

  • Edge Detection Function
    As powerful vision system function, the both sides PCB edges beside a cutting tab are detected and compensate cutting position by tolerance of boards.

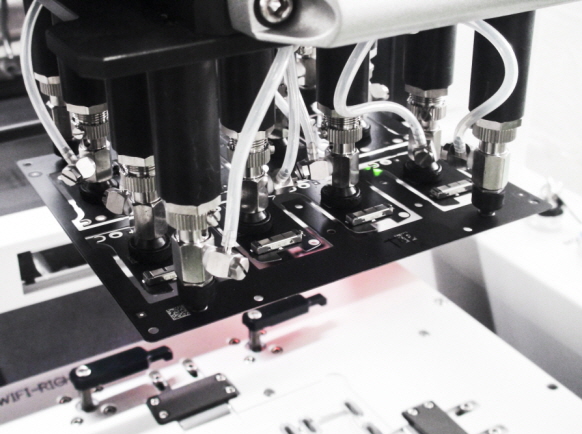

  • PCB Unloader
    It is Using the Vacuum Type Unloader to Pick PCB up from Jig for Avoiding Operator Mistakes Unloading PCB.
  • Bit Detection Sensor
    It sounds the alarm when detecting bit broken automatically

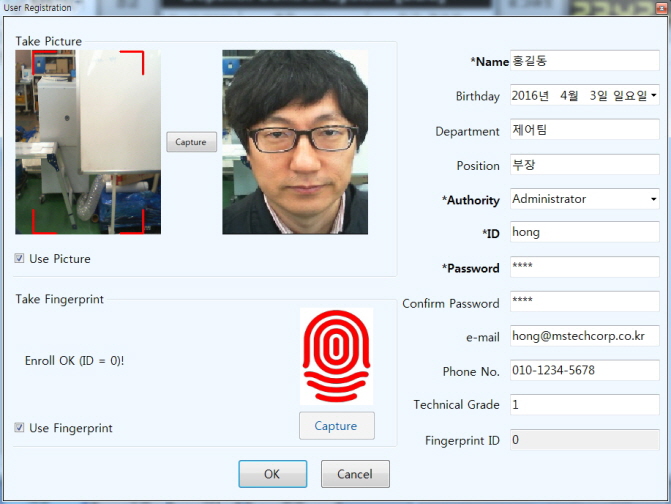

  • ID Verification with Fingerprint
    It is available to be high security user management and easy logging by registered and appreciated user fingerprint.
  • CAD/CAM Data Conversion
    It is converted CAD/CAM data to routing cutting data then able to do offline programing.
  • Real-Time Spindle RPM Monitoring
    It is protected PCB with sounding alarm when spindle PRM is declining by detecting it in real time.

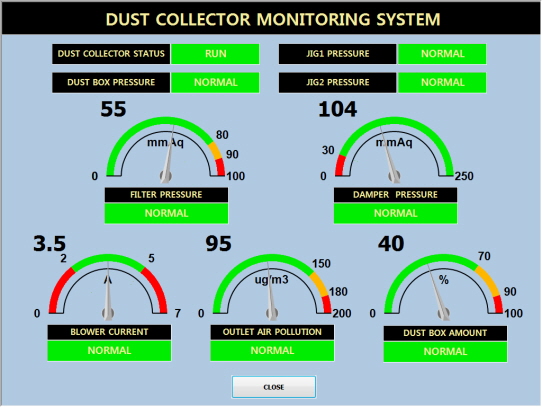

  • Real-Time Self-Diagnosis Dust Collector
    It is able to do self-diagnosis about pressure, damage & pollution level inside dust collector and sound alarm to router(patent-pending)

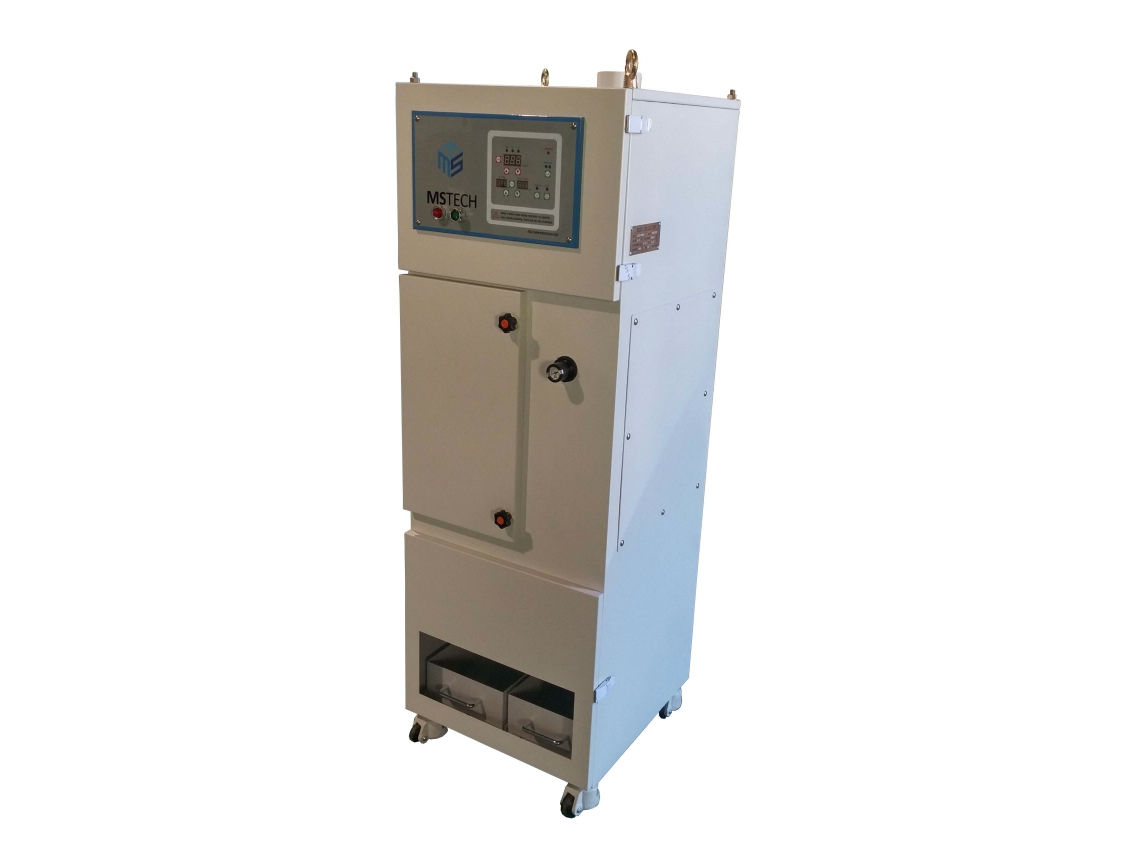

  • Filter+Cyclone Complex Dust Collector
    It is able to use filter semi-permanently with applied cyclone, and install plastic bag.

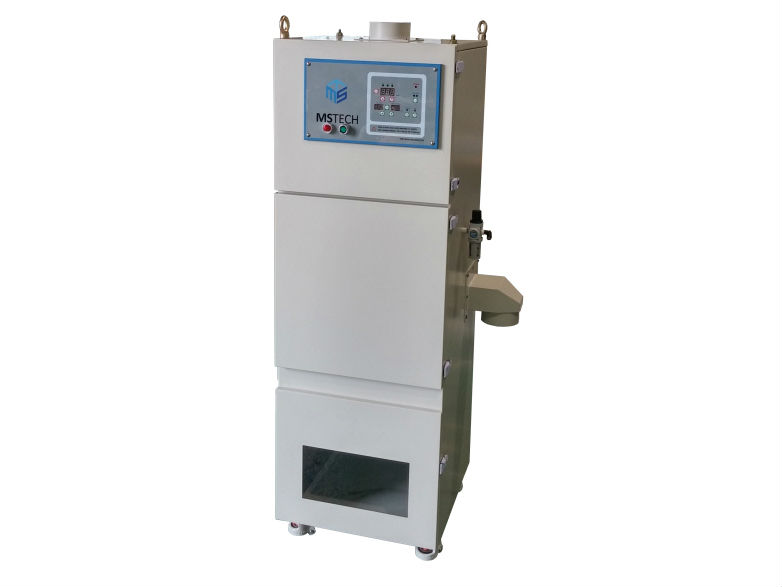

  • Easy Handling Dust Collector
    It is able to use the plastic bag for disposing dust cleanly & easily.
